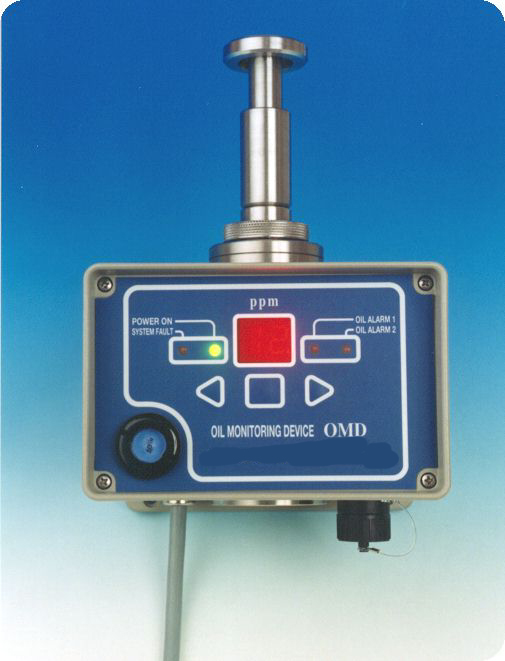

Industrial Oil Water Monitor

Range:

0 - 30 ppm (trend indication to 50 ppm)

Accuracy:

Better than +/- 2 ppm insoluble Oil (with special calibration)

Degree of Protection:

IP 65

Size OMD-12:

175 x 190 x 220 mm (W x H x D)

Size OMD-12 A:

210 x 330 x 220 mm (W x H x D)

Sample Temperature:

+1°C to +70° C

Alarm Contact Rating:

Potential-free 1 pole change-over contacts, 3 A / 24 V

Alarm Operating Points:

15 ppm (Factory Set) adjustable from 1 - 30 ppm

Alarm 1 & 2 Operating Delay:

2 - 30 sec. adjustable

Power Supply:

24 Volt AC/DC, other voltages on request

Output Signal:

0 - 20 mA or 4 - 20 mA, reversible Ri < 500 W
