Hannay Reels

Hannay Fire Hose Reel

LD Series Fire Hose Reels
LD Series Fire Hose Reel
  LD Series Reels and Spools
  For up to 6 Inch ID Collapsible Hose


Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels


Hose and Line Reel Color Choices

Features:

• Square tubing frames.

• Heavy gauge steel discs.

• Drums are formed by reinforced tie rods with radial supports.

• Pillow block ball bearings.

• Chain & sprocket rewind with electric (12 or 24V) or hydraulic rewind motor.

• Hydraulic caliper disc brake.


Any speed and torque requirements MUST be known to properly specify the correct reel for the application.

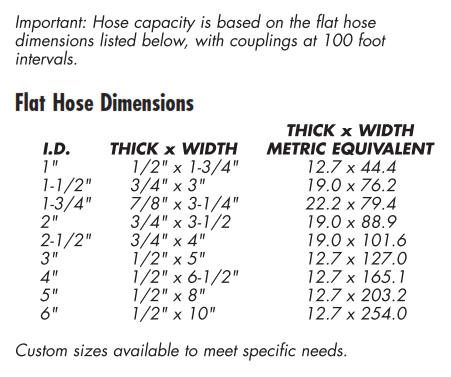

Flat Hose Capacity

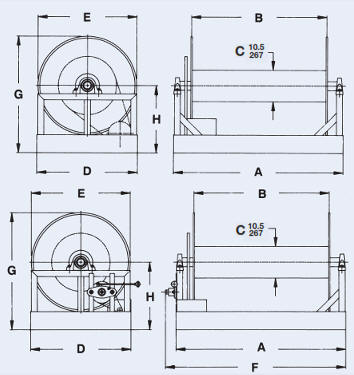

Fire Fighting Hose Reel LD Series Drawing

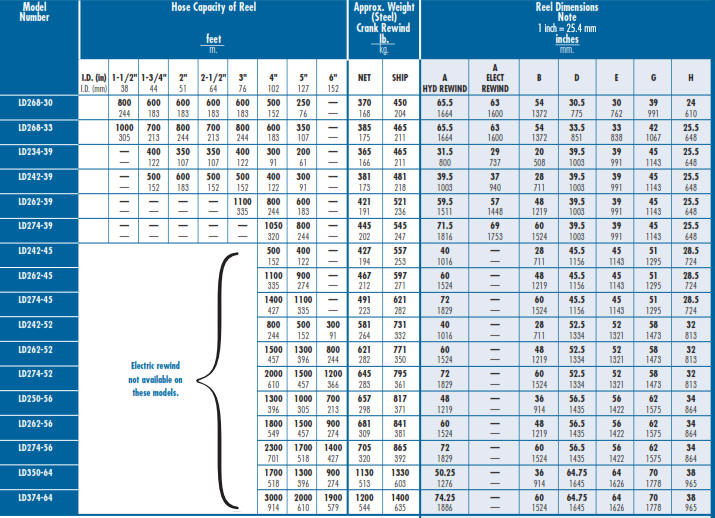

Fire Fighting Hose Reel LD Series Chart

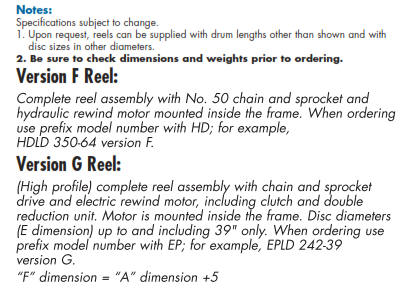

Fire Fighting Hose Reel LD Series Notes
