Hannay Reels

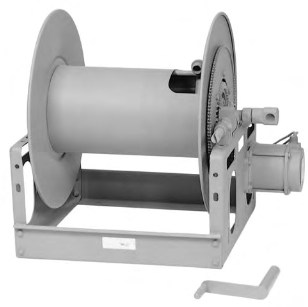

Hannay Fire Hose Reel

F Series Fire Hose Reel

F Series Fire Fighting Hose Reel
F Series Hose Reel
Single 3/4 or 1 Inch ID Hose
Manual or Power Rewind


Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices


Features:

To handle 3/4" I.D. or 1" I.D. hose.

• Painted steel booster hose reel is dependable, rugged.

• "Super Booster" (aluminum construction) reel weighs up to 30% less than standard booster reel.

Stainless Steel construction is also available.

• Gear-driven crank rewind is standard. Choose chain and sprocket drive powered by electric, hydraulic or compressed air motor.

• Pinion brake standard.

• Standard inlet 1" 90° ball bearing swivel joint with 1" female NPT threads.

• Standard outlet 1" male NST threads. (1.375" x 8 threads per inch.)

• Consult factory for other sizes and/or threads.

• Standard inlet, outlet riser and hub assembly are steel (also available in stainless steel).

• Rollers and roller mounting brackets are accessory items. Specify roller position

• Pressures to 1000 psi (69 bar).

• Temperatures from –60°F to +250°F (–51°C to+121°C).

• Consult factory for reels to operate at other pressures and temperatures.

CAUTION: When using Niedner Reeltex hose a special riser and/or larger drum diameter is required.


Fire Fighting Hose Reel F Series Drawing

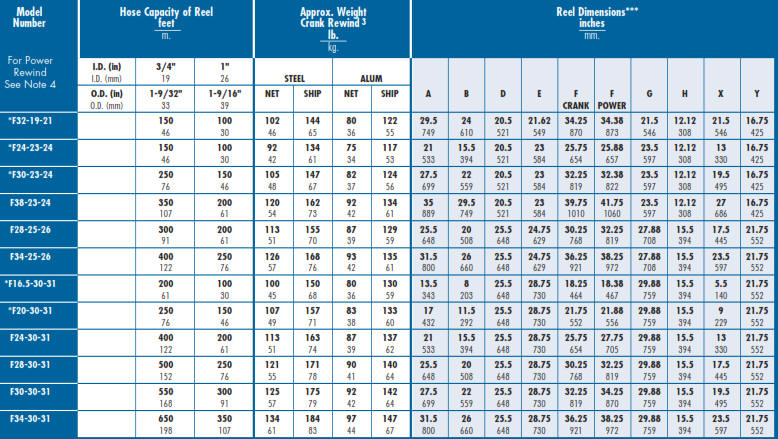

Fire Fighting Hose Reel F Series Chart

Fire Fighting Hose Reel F Series Notes
