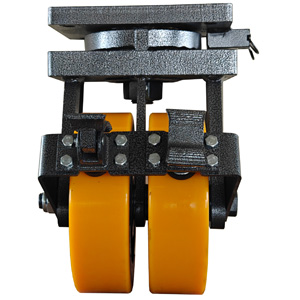

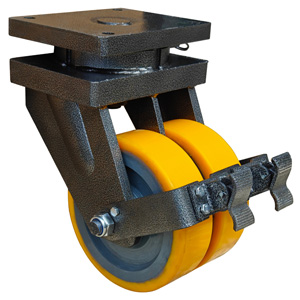

Heavy Duty Caster Wheels

Double Poly Urethane with Steel Hub, Brake & Swivel Lock

Stock Casters Include:

Nylon Wheels with Steel Hubs

Swivel Function

Swivel Function Lock

Brake

Flanged Mounting

Model	Caster Diameter	Stock	Capacity Each	Container Gross	Color	Weight
F-DW-NS-06-X	6" [150mm]	Made to Order	As Needed	Various	HUB: Silver Wheel: Yellow	Various
F-DW-NS-08-X	8" [200mm]	Made to Order	As Needed	Various	HUB: Silver Wheel: Yellow	Various
F-DW-NS-10-5	10" [250mm]	IN STOCK	11,000 lbs [5,000 kgs]	44,000 lbs. (20,000 kgs)	HUB: Silver Wheel: Yellow	157 Lbs
F-DW-NS-10-8	10" [250mm]	IN STOCK	17,600 lbs. (8,000 kgs)	70,400 lbs (16,000 kgs)	HUB: Silvery Wheel: Yellow	168 Lbs
F-DW-NS-10-X	10" [250mm]	Made to Order	As Needed	Various	HUB: Silver Wheel: Yellow	Various
F-DW-NS-12-X	12" [300mm]	Made to Order	As Needed	Various	HUB: Silvery Wheel: Yellow	Various
F-DW-NS-14-X	14" [350mm]	Made to Order	As Needed	Various	HUB: Silvery Wheel: Yellow	Various
F-DW-NS-16-X	16" [400mm]	Made to Order	As Needed	Various	HUB: Silvery Wheel: Yellow	Various
F-DW-NS-18-X	18" [450mm]	Made to Order	As Needed	Various	HUB: Silvery Wheel: Yellow	Various
