Lifting Points

10 Metric Ton SWL Eye Lifting Point

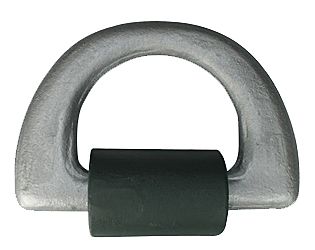

10 Metric Ton Lifting Point Eye

PAL-A1-LIFT



Steel Eye Lifting Point with Welding Strap

10 Metric Ton Safe Working Load

22,000 Lbs. Safe Working Load



Calculations:

50 Metric Ton Breaking Load with 5:1 Safety Factor


Welding:

Safe and approved welding process is the responsibility of others.

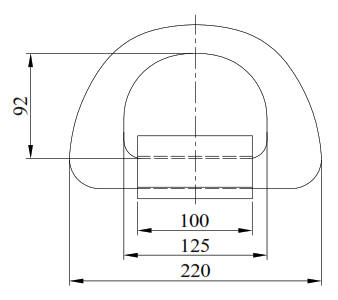

Drawing: PAL-A1-LIFT 10 Metric Ton SWL Eye Lifting Point
