Aluminum Tie Down Points

P40SS Flush Round Aluminum Securing Point

Aluminum Tie Down Points  Aluminum Tie Down Points

Purchase ONLINE Small Quantities of Tie Down Points


Part Number: P-40SS

5.63 Inch Diameter

2.36 Inch Height Overall

A357-T6 Tempered

16mm Diameter Stainless Pin

Breaking Load: 9,500 Lbs @ 45 Degree Pull

Weight: 1.78 Lbs Each



Pull Test Data Available

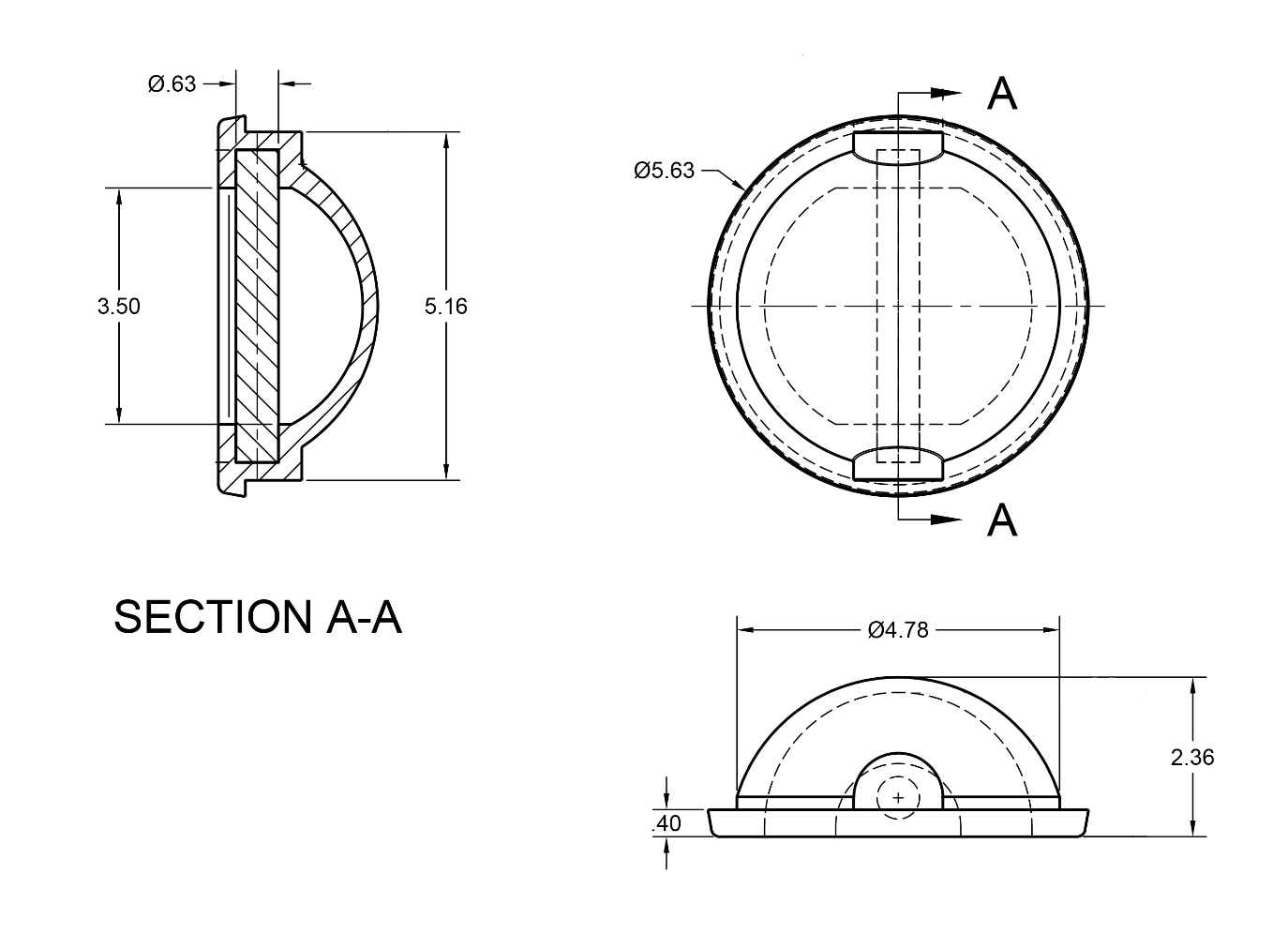

Drawing of P40SS Aluminum Tie Down Point


Custom aluminum castings made upon request.



Contact PM&I for size, strength, drawings and price information
