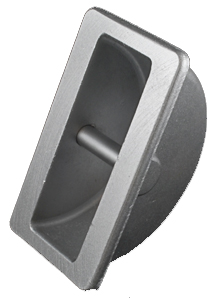

Aluminum Tie Down Points Flush Rectangular Aluminum Pocket Securing Point


Purchase ONLINE Small Quantities of Tie Down Points

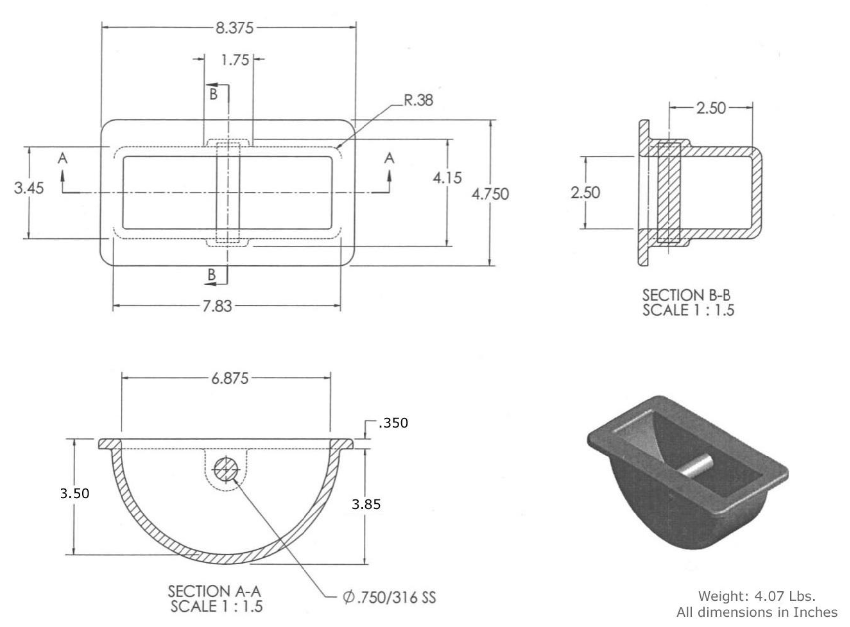

Part Number: PMI 064.15
Aluminum Casting - Flush
8.375 Inch Length x 4.750 Inch Width
3/4 Inch Diameter Stainless Pin
Breaking Load: 20,790 Lbs

Aluminum Cross Bar Available (Lower Capacity)

Pull Test Data Available

Custom aluminum castings made upon request.

Contact PM&I for size, strength, drawing and price information
info@pacificmarine.net

	Other Aluminum Fittings
____________________________________________________________________________________________________________

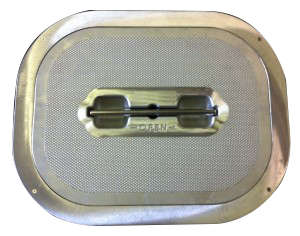

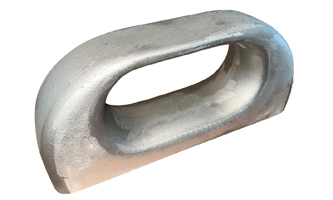

Aluminum Marine Cleats	Aluminum Marine Deck Chocks	Aluminum Boat Hatches
Bolt Down and Weld Down	Closed and Open and Bulwark	Hatches and Inspection Ports

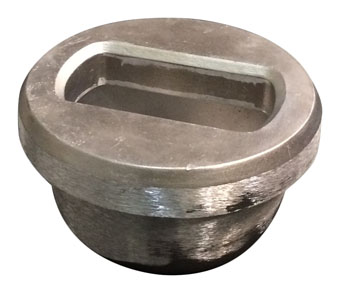

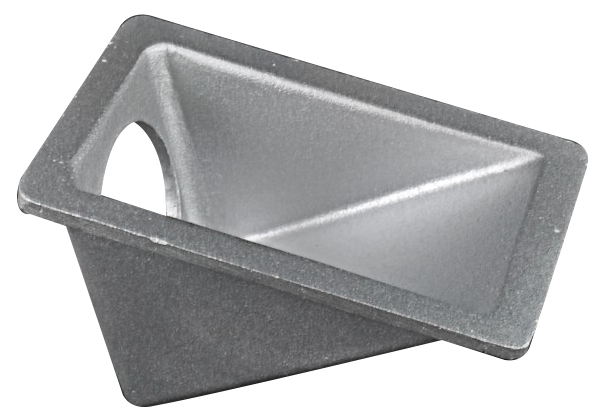

Aluminum Container Foundation	Aluminum Deck Scupper
