Aircraft Tie Downs - Helicopter Tie Downs

Model P3490 - For Concrete Installation

      aircraft tie down 3490

Purchase ONLINE Small Quantities of Tie Down Points

3490 Aircraft Tie Down
Concrete Installation with Optional Rebar


Ductile Cast Iron: ASTM A-536
7 lbs. each
9,000 lb. capacity
finish: no paint

Dims:
Side Rebar Holes: 15.9mm = 5/8 inch diameter
Bottom Stake Hole: 22mm = 7/8 inch Square

P3490 Aircraft Securing Point Cut Sheet

How To Install 3490 Series Tie Down In Cement



Airport Aircraft Securing and Grounding Product General Catalog



grouding rod with eye
Grounding Rods

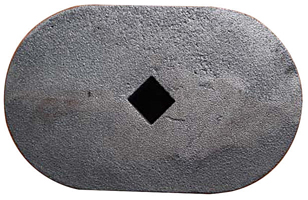

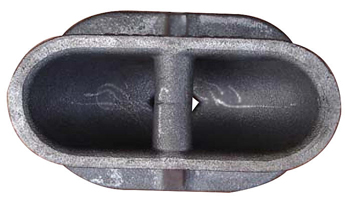

3490 Aircraft Tie Down Top View  3490 Aircraft Tie Down Bottom View

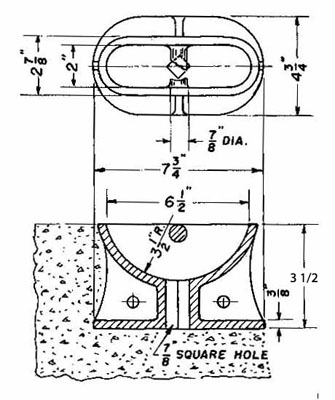

3490 Aircraft Tie Down Drawing
