Aircraft Tie Downs - Helicopter Tie Downs Airport Mooring Eyes, Lashing Points, Mooring Points
Airport Aircraft Securing and Grounding Product General Catalog

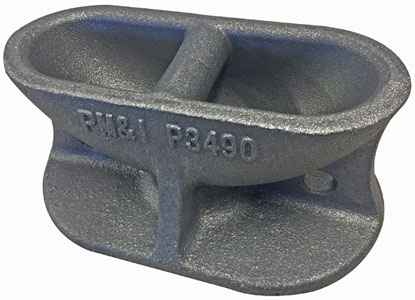

Model P3490 Aircraft Tie Down	Model P3490-A Aircraft Tie Down	Model P3490-B Aircraft Tie Down
Aircraft Tie Down	Aircraft Tie Down	Aircraft Tie Down
Helicopter Tie Down	Helicopter Tie Down	Helicopter Tie Down
Ductile Cast Iron ASTM A-536	Ductile Cast Iron ASTM A-536	Ductile Cast Iron ASTM A-536
For Imbed Into Concrete	For Imbed Into Concrete	For Imbed Into Concrete
9,000 lbs. Capacity Estimate	23,300 lbs. Capacity Estimate	200,000 Lbs. Capacity Estimate
3 1/2" overall height	6" overall height	9" overall height

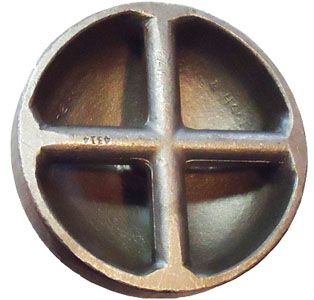

US Navy Certified Aircraft Tie Down	Aluminum Tie Down	Crinkle Bar
Helicopter Tie Down USN Certified	Aircraft, Vehicle and Cargo	Aircraft, Vehicle and Cargo
For Ship and Platform Use	Custom castings made upon request	For Imbed Into Concrete
Weld Into Steel or Aluminum Decks	For aluminum deck surfaces	Aircraft and Other Mooring Point
Ship, Navy, Coast Guard, Platform		Various Designs


Aircraft Tie Down Eye and Rod	Other Steel Securing Points	Aircraft and Cargo Tie Down 14A

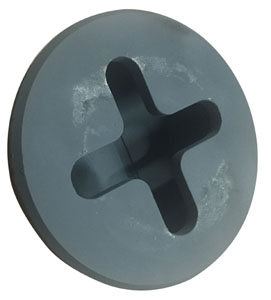

Made to Customer Specification	Cloverleaf, Hook Points, D Rings	Single Piece Castings
Asphalt Applications	Chain Points and More	Germanischer Lloyd Certified
		Not Certified for Military


Grounding Rods with Eye	Heavy Duty D Rings
Copper Clad	Up to 65 Ton Breaking Load
Concrete or Asphalt Application

PM&I supplies aircraft and helicopter tie-down points, mooring eyes, and lashing points for airports, ship and platform decks, and vehicle and cargo securing, in ductile cast iron, steel, and aluminum construction. The catalog includes imbed-in-concrete tie downs (Model P3490, P3490-A, and P3490-B, ductile cast iron per ASTM A-536, with estimated capacities ranging from 9,000 to 200,000 lbs. depending on model), ship and platform tie downs (helicopter tie downs weldable into steel or aluminum decks for Navy, Coast Guard, and commercial platform use, and US Navy-certified aircraft tie downs built to NAVSEA 803-1916300), and specialty and custom tie downs (aluminum tie downs for aluminum deck surfaces, crinkle bar tie downs, custom-cast tie downs made to customer specification, aircraft tie down eyes and rods for asphalt applications, and single-piece Type 14A castings that are Germanischer Lloyd certified but not certified for military use). Related securing hardware — including grounding rods rated up to 65 tons breaking load, heavy duty D-rings, and other steel cargo lashing points such as cloverleaf and hook-style points — is also available. Tie-down capacity and certification vary significantly by model, so specifying the correct part depends on installation method (imbed, weld, or bolt), surface type (concrete, asphalt, steel, or aluminum deck), and whether military certification is required for the application. Whether you're outfitting an airport ramp, a ship or platform deck, or a vehicle and cargo securing area, PM&I's aircraft tie-down catalog is backed by manufacturing and distribution experience serving marine, industrial, and defense customers worldwide since 1985. Browse the full aircraft tie-down catalog above, or contact PM&I directly for engineering support, custom fabrication, and bulk quotes.
