Navy & NATO Navy Aircraft Tie Downs Flush Mounted Shipboard and Platform Use For Aluminum or Steel Deck NAVSEA DRAWING: 803-1916300 REV P

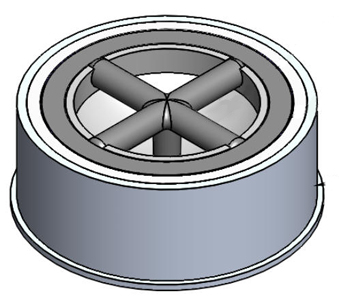

Type 14 - Type XIV US Navy Aircraft Tie Down - Flush	Type 18 - Type XVIII US Navy Aircraft Tie Down - Flush	ALCOA Flight Deck Tie Down Assembly 05003554 Substitute
For Welding Into Steel Deck	For Welding Into Aluminum Deck	For PK-T50 USN Decking
Type 14 (Replaces Type 1)	Type 18 (Replaces Type 17)	LCS Type Ships with Aluminum Deck
Type XIV (Replaces Type I)	Type XVIII (Replaces Type XVII)
Per NAVSEA Drawing 803-1916300	Per NAVSEA Drawing 803-1916300


Type 7 - Type VII US Navy Aircraft Tie Down - Flush
For Welding Into BALLISTIC Steel Deck
NSN 1730-01-683-0506

Helicopter or Aircraft Tie Down
Primarily US and Other NATO Navy Application

With or Without Drain Holes
Drain Holes are Used in Some Applications Such as Aircraft Carrier Elevators

Part Numbers:
Type I / Type 1 - Old Style - Steel Deck
Type XIV / Type 14 - New Style - Steel Deck
Type XVII / Type 17 - Old Style - Aluminum Deck
Type XVIII / Type 18 - New Style - Aluminum Deck
Type VII /Type 7 - Steel Deck

* US Navy Retrofits require new style fittings.

For quotations please provide:
Quantity Needed
Part Number




See Concrete Embedded Tie Downs Here
