Pneumatic Winches and Hoists

Man Rider, Tugger or Hoist
 BA3A
Pneumatic Winches and Hoists  Pneumatic Winches and Hoists  Pneumatic Winches and Hoists

Pneumatic hoist, tugger winch or man rider configurations.
Rating is reduced in man rider configurations (10:1).

How to Size a Winch or Hoists

Information Required to Quote Pneumatic Winch or Hoist

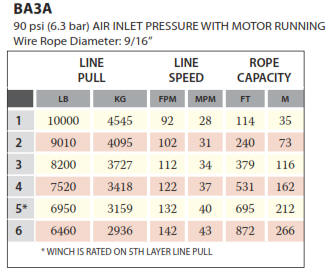

Model Line Pull Line Speed AVG. Air Consumption At Rated Load Max. Stall Pull 1st layer Pipe Inlet Size Hose Size
BA3A 7,000 lbs
(3,175 kg)		 132 fpm
(40 mpm)		 700 scfm
(19.9 m3/min)		 14,800 lbs
(6,713 kg)		 1 1/2 in
(38 mm)		 2 in
(50 mm)

Pneumatic Winch and Hoist
