MyTe Winch

I Beam Crane Hoist Model HAC36

Model HAC36 (3 ton - double line hoist)

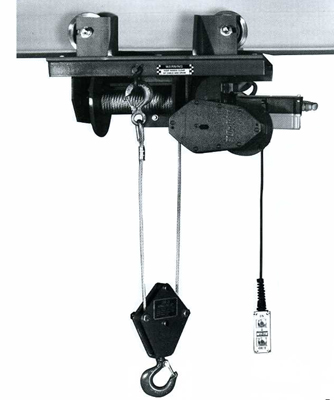

MyTe Winch HAC36 I Beam Crane Hoist with Trolley Drawing

Purchase ONLINE MyTe Winch I Beam Crane Hoist with Manual Trolley

Features:

115 Volt brake motor

Worm gear reduction for positive load holding

Dynamic braking for instant stopping

Low headroom: 15" single line / 19" double line

Trolley built to beam size: 4" to 15" structural I beams

Hoist complete with cable hook and block for 20' lifts

Upper and lower adjustable limit switch.

Speeds:

30 feet per minute - no load

25 feet per minute - 500 lbs. / single line lift

20 feet per minute - 1,000 lbs. / single line lift

10 feet per minute - 2,000 lbs. / double line lift

Lifting Capacity:

1,000 lbs - single line - up to 40 feet of 1/4" cable (1-2 layers)

850 lbs. - single line - up to 65 feet of 1/4" cable (3 layers)

600 lbs. - single line - up to 250 feet of 1/4" cable (full drum)

Duty Cycle:

25% - 15 minutes per hour constant operation

Drum Storage:

Unit is provided with 42 feet of 1/4" cable standard.

If application needs longer cable order custom without lower limit switch.

** For best results, use the minimum amount of cable required

1/8" wire - 1,000 feet

3/16" wire - 450 feet

1/4" wire - 250 feet

5/16" wire - 150 feet

Power:

Universal 18,500 RPM reversible 1.25 HP brake motor (no load speed)

15' power cord plugs into any 115 volt AC grounded outlet

6 amp no load

14 amp full load

10 foot pendant

Shipping Weight:

133 pounds

Factory Installed Options:

230 volt

12 Volt DC (model 80-12)

3 ton hoist (model HAC 36)

Lug mount trolley

Motorized trolley

Upper limit switch only
