Braden Winch HP35 Series

Planetary Gear Recovery Winches
HP35 Series

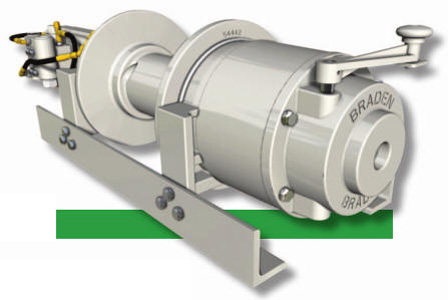

Braden Winch HP35 Series

Our planetary gear recovery winches are a high performance product designed to provide many years of service.

Braden Winch HP35A Sales Flyer

Braden Winch HP35A Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist


Braden Winch Serial Number Location

Standard Features:
Easy & efficient installation procedures
Band brake controls back-spinning and bird-nesting of wire rope when clutch is disengaged
Visible freespool clutch with negative draft jaws for positive engagement under load

Patented brake valve for smooth and precise load control


Optional Features:
2 speed hydraulic motors
Drum size

Model Type Rated Capacity Weight
HP50B Hyd. 50,000 lbs (22,680 kg) 1,075 lbs (488 kg)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

Braden Winch HP35 Series

Braden Winch HP35 Series

Braden Winch HP35 Series
