Braden Winch PD21 Series

PD21 Series

Braden Winch

The PD Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch PD21 Sales Flyer

Braden Winch PD21 Series Materials List

Braden Winch PD21 Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist


Braden Winch Serial Number Location

Standard Features:
Multi-disc Brake - Spring applied and hydraulically released
Anti-friction bearings for maximum efficiency
Multi-stage planetary reduction


Optional Features:

Gear Ratios

Hydraulic Motors (Gear, Vain, Piston)

Drum Sizes
Mounting Configurations
Free Fall Hydraulic Winch
Controlled Free Fall Hydraulic Winch

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

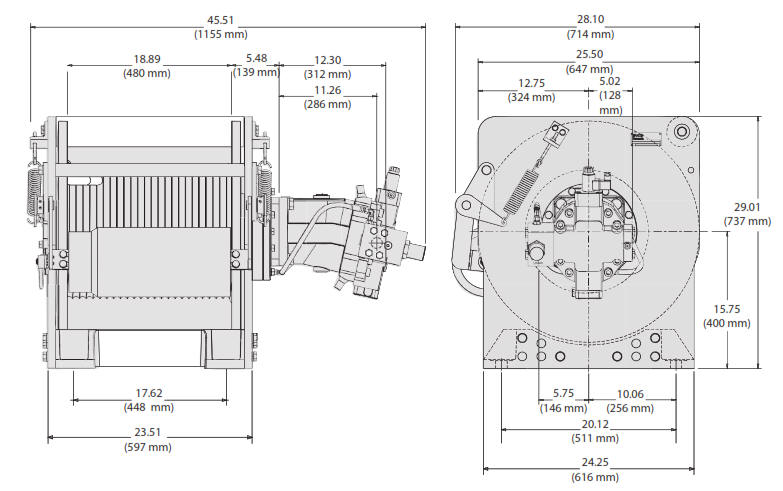

Braden Winch PD21 Series

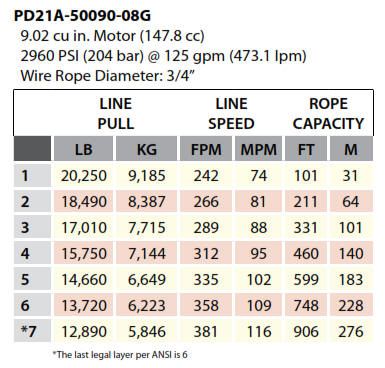

Braden Winch PD21 Series
