Hydraulic Recovery Winches

Low Mount Worm Gear Recovery Winches

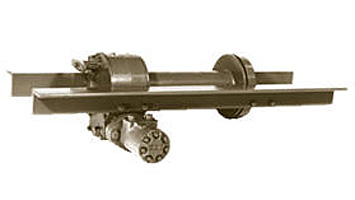

Model AHSU10-12F

Braden Winch

Our low mount worm gear recovery winches are a high performance product designed to provide many years of service.

Information Needed to Quote Hydraulic Hoist and Hydraulic Winches

How to Size a Winch or Hoist

Standard Features:

Oil-cooled, fully adjustable automatic worm brake

High strength aluminum bronze worm gear for increased pulling power and long gear life

Tapered roller bearings providing extra capacity in carrying worm thrust and radial loads

Freespool clutch with negative draft jaws for positive engagement under load

Options:

2-Speed Hydraulic Motor

Available in Mechanical or Hydraulic Drive

Extension Shaft

Model	Type	Rated Capacity	Weight
AHSU10-12F	Hyd.	30,000 lbs (13,635 kg)	470 lbs (213 kg)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed. Be sure to review prior to purchase.

AHSU10
Layer	Line Pull		Line Speed		Rope Capacity
	(lbs)	(kg)	(fpm)	(mpm)	(ft)	(m)
1	30000	13608	17	5	30	9
2	25240	11449	20	6	66	20
3	21780	9879	23	7	108	33
4	19160	8691	27	8	156	47
5	17100	7756	30	9	209	64
6	15440	7000	33	10	268	82

Engineering Data
	English	Metric
Ratio	33:1
Drum Diameter	6 in
Flange Dia	14 in	355 mm
Flange Width	12.31 in	312 mm
Pressure	2800 psi	193 bar
Flow	35 gpm	132 lpm
Wire Rope Diameter	5/8 in	16 mm
Static Input Torque	8070 lb-in	912 N-m
Dynamic Input Torque	6140 lb-in	694 N-m
Max. Input @ rated Load	330

Wire Rope Capacity
Rope Diameter	English	Metric
9/16 in	429	131
5/8 in	268	82
3/4 in	186	57
