Braden Winch BG3B Series

BG3B Series
Braden Winch

The BG Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch BG3 Sales Flyer

Braden Winch BG3 Series Materials List


Braden Winch BG3 Series Install, Maintenance and Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard features of the BG3 include:
Multi-disc Brake - Spring applied and hydraulically released
Anti-friction bearings for maximum efficiency
Single-stage planetary reduction

Optional Features of the BG Series Planetary Hoist
Hydraulic Motors (Displacements, 2-Speed)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

Model BG3B-05080-01

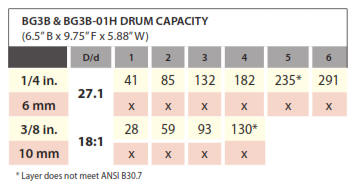

Layer Line Pull Line Speed Rope Capacity
  (lbs) (kg) (fpm) (mpm) (ft) (m)
1
 3000 1364 140 43 28 9
2
 2700 1227 155 47 59 18
3
 2460 1118 170 52 93 28
4*
 2260 1027 186 57 130 40
  *Layer does not meet ANSI B30.7
Model BG3B-05119-01H
Layer Line Pull Line Speed Rope Capacity
  (lbs) (kg) (fpm) (mpm) (ft) (m)

1
 3800 1727 94 29 28 9
2
 3430 1559 104 32 59 18
59
 3120 1418 114 35 93 28
4*
 2860 1300 125 38 130 40
  *Layer does not meet ANSI B30.7

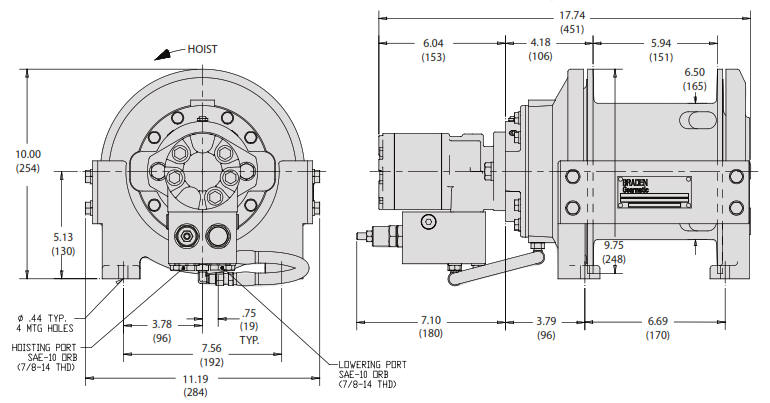

Braden Winch BG3B

Braden Winch BG3B
