Heavy Duty Hand Winch - Manual Winch

Shur Worm Series

W Series Hand Winch Drawings

Heavy Duty Hand Winch - Manual Winch: W Series Drawings Heavy Duty Hand Winch - Manual Winch: W Series Drawings

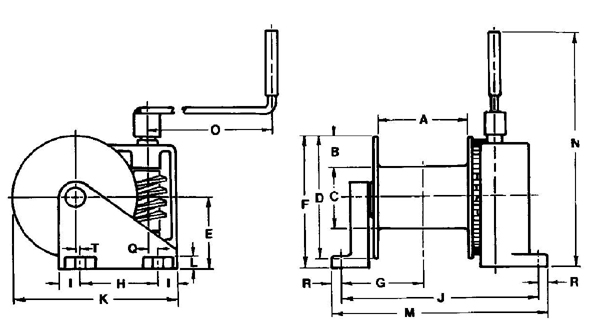

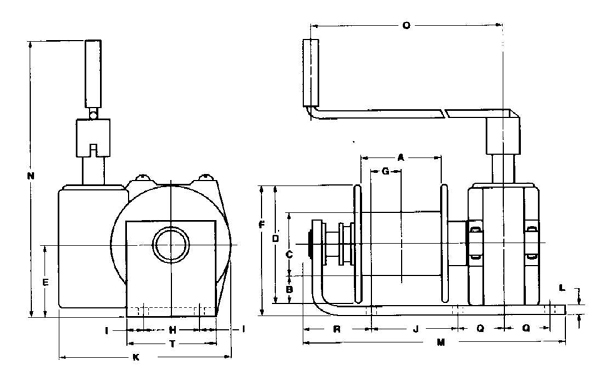

W2 and W10 Units W100 and W200 Units

How to Size a Winch or Hoist

Purchase ONLINE Select Hand Winches and Hoists

Dimensions (Inches)
Model A B C D E F G H I J K L M N O Q R T
W2 2 1 1/8 2 3/4 5 3 5 1/2 2 3/4 3 7/8 7/8 6 3/4 7 1/2 1/2 7 1/2 12 1/4 8 1/2 1/2 -
W5 5 1/2 1 1/8 2 3/4 5 3 5 1/2 4 1/2 3 7/8 7/8 10 1/4 7 1/2 1/2 11 1/4 12 1/4 8 1/2 1/2 -
W10 6 2 4 8 4 1/2 8 1/2 5 13/16 5 1/4 1 1/4 13 1/2 10 3/4 3/4 14 1/2 14 5/8 12 13/16 5/8 1/4
W100-3 3 1 2 3/8 4 3/8 2 9/16 4 3/4 1 2 1/2 1/2 3 1/4 5 7/8 3/8 8 7/8 11 1/4 8 1 5/8 2 5/8 3 1/2
W100-3P 3 1 2 3/8 4 3/8 2 9/16 4 3/4 1 2 1/2 1/2 3 1/4 5 7/8 3/8 8 7/8 11 1/4 8 1 5/8 2 5/8 3 1/2
W100-6 6 1 2 3/8 4 3/8 2 9/16 4 3/4 2 1/2 2 1/2 1/2 6 1/4 5 7/8 3/8 11 7/8 11 1/4 8 1 5/8 2 5/8 3 1/2
W100-6P 6 1 2 3/8 4 3/8 2 9/16 4 3/4 2 1/2 2 1/2 1/2 6 1/4 5 7/8 3/8 11 7/8 11 1/4 8 1 5/8 2 5/8 3 1/2
W200-5 5 1 1/2 4 7 4 1/8 7 1/2 3 4 1/2 6 9 1/4 1/2 12 1/2 15 1/4 12 1 5/8 1 3/4 5
W200-5P 5 1 1/2 4 7 4 1/8 7 1/2 3 4 1/2 6 9 1/4 1/2 12 1/2 15 1/4 12 1 5/8 1 3/4 5
