Heavy Duty Hand Winch - Manual Winch

5 Ton Hand Winch

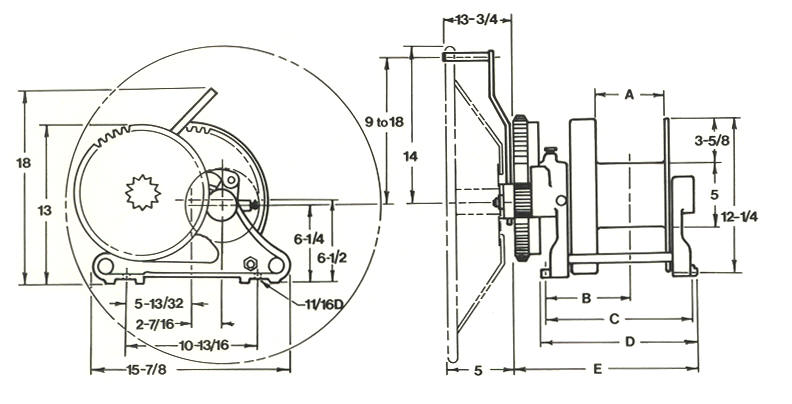

HM Series - Drawing

5 Ton Heavy Duty Hand Winch

    How to Size a Winch or Hoist

Model A B C D E
HM8/8W 8 7 7/8 13 7/8 15 3/8 17 3/4
HM12/12W 12 9 1/4 17 3/4 19 1/4 21 1/4
HM16/16W 16 11 1/2 22 1/4 23 3/4 25 3/4
HM24/24W 24 16 3/4 30 1/4 31 7/8 33 3/4
