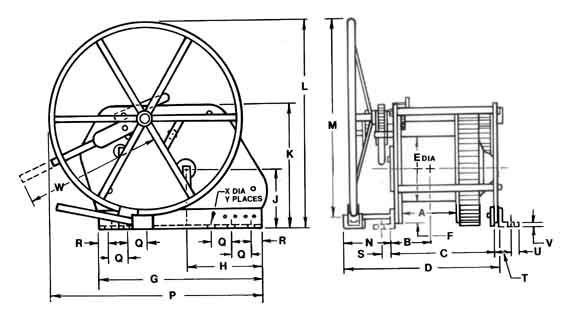

Low Profile Manual Barge Winch Drawing

Low Profile Manual Barge Winch Drawing

Dimensions (inches)
A B C D E F G H J K L M N P Q R S T U V W X Y
20HL 10 6 1/2 15 7/8 25 7/8  8 5/8 6 23 11 1/2 11 3/4 24 35 32 9 3/8 38 4 3/4 1 1 1 3/8 53 1/2 13/16 8
25HL 9 7 3/8 17 7/8 27 7/8 10 3/4 3 5/8 28 12 1/4 21 21 34 1/2 32 9 3/8 37 1/2 4 3 1 2 1/8 1 1/2 53 1/2 13/16 10
50HL 11 8 20 7/8 30 7/8 12 3/4 4 3/8 33 15 12 25 42 1/2 40 9 1/8 43 4 2 1 3/8 3 1 7/8 3/4 59 1/2 1 1/8 12
75HL 10 8 1/8 21 1/4 31 1/4 16 4 1/2 41 16 1/2 14 29 50 1/2 48 9 50 1/2 4 2 1 1/2 3 1/2 1 1/2 1 65 1/2 1 1/8 16
