Stainless Snaps

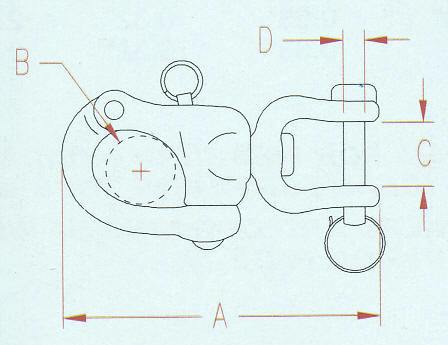

Stainless Jaw Swivel Snap Shackle

Precision Cast
316 Stainless Steel

Stainless Jaw Swivel Snap Shackle  Stainless Jaw Swivel Snap Shackle

Stamped Bail.  Removable Jaw Pin.
Break load is approximately 4 times the work load limit.

Item A Size B C D Weight
S0170-0001 2-3/4" 0.50" 0.43" 0.25" 0.14 lb
S0170-0002 3-1/2" 0.62" 0.50" 0.25" 0.27 lb
S0170-0003 5" 1.00" 0.87" 0.50" 0.89 lb
