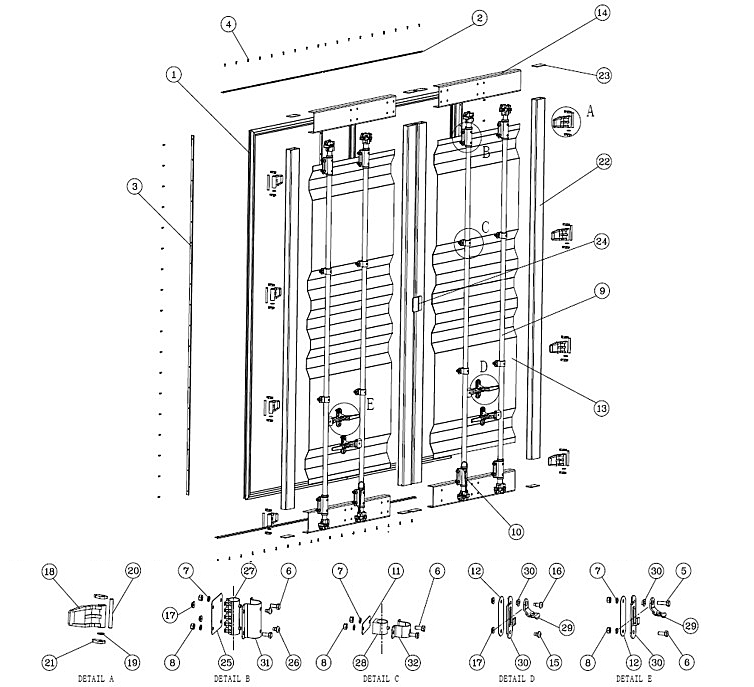

Shipping Container Rear End Parts (Door)

Exploded View Diagram with Part Numbers

*** Not All Shipping Containers Are Built Identically.

Parts Shown Will Fit in Majority of Container In Service.

Check Drawings Prior to Purchase!

REAR END (DOOR) & SPARE PARTS
Basic Information		Standard Height Containers			High Cube Containers			Quantity
Description	Mark	Part No.	Size (mm) Specification	Unit Weight (KGS)	Part No.	Size (mm) Specification	Unit Weight (KGS)	20 Foot	40 Foot
DOOR GASKET	①	PMI-D26-03E	40 Meter Roll	6.00	PMI-D26-03E	40 Meter Roll	8.00	1	1
GASKET RETAINER - HORIZONTAL	②	PMI-D20-01A	1.0X23X7X1130	0.31	PMI-D20-01A	1.0X23X7X1130	0.31	4	4
GASKET RETAINER - VERTICAL	③	PMI-D20-01B	1.0X23X7X2249	0.60	PMI-D20-01C	1.0X23X7X2549	0.68	3	3
STAINLESS STEEL BLIND RIVET	④	PMI-D29-02	M4.8X14	0.01	PMI-D29-02	M4.8X14	0.01	84	90
BOLT (DOOR SCREW)	⑤	PMI-D27-02	M10X35	0.03	PMI-D27-02	M10X35	0.03	3	3
BOLT (DOOR SCREW)	⑥	PMI-D27-01	M10X25	0.02	PMI-D27-01	M10X25	0.02	39	47
SPRING WASHER (DOOR SCREW RUBBER)	⑦	PMI-D27-04	M10	0.00	PMI-D27-04	M10	0.00	42	50
NUT (DOOR SCREW NUT)	⑧	PMI-D27-03	M10	0.08	PMI-D27-03	M10	0.08	42	50
LOCKING ROD	⑨	PMI-D23-A	GP, 4 PCS PER SET	44.00	PMI-D23-B	HC, 4 PCS PER SET	48.00	1	1
DOOR HOLDER	⑩	PMI-D24-09	Nylon	0.01	PMI-D24-09	Nylon	0.01	2	2
SHIM (SMALL BRACKET GASKET)	⑪	PMI-D23-23	T4.0	0.01	PMI-D23-23	T4.0	0.01	4	8
SHIM (RETAINER BRACKET GASKET)	⑫	PMI-D23-24	T4.0	0.01	PMI-D23-24	T4.0	0.01	4	4
DOOR PANEL	⑬	PMI-D04-03A	2.0X943X1957	32.00	PMI-D04-03B	2.0X943X2262	37.00	2	2
DOOR RAIL	⑭	PMI-D14-02	3.0X50X150X50X943	5.29	PMI-D14-02	3.0X50X150X50X943	5.29	4	4
HUCK-BOLT	⑮	PMI-D29-17	M10X8	0.01	PMI-D29-17	M10X8	0.01	2	2
HUCK-BOLT	⑯	PMI-D29-08	M10X16	0.01	PMI-D29-08	M10X16	0.01	2	2
HUCK-BOLT CAP	⑰	PMI-D29-09	M10	0.01	PMI-D29-09	M10	0.01	10	10
HINGE BLADE FORGING TYPE	⑱	PMI-D24-01-N	Nylon Bush	0.96	PMI-D24-01-N	Nylon Bush	0.96	8	8
PLAIN WASHER (FOR HINGE)	⑲	PMI-D24-07	1.2X13(ID)X26(OD)	0.01	PMI-D24-07	1.2X13(ID)X26(OD)	0.01	8	8
HINGE PIN	⑳	PMI-D24-05	SUS201, L=108	0.10	PMI-D24-05	SUS201, L=108	0.10	8	8
HINGE LUG / BUTT	㉑	PMI-D24-06	SS400	0.05	PMI-D24-06	SS400	0.05	16	16
DOOR FRAME HOLLOW SECTION	㉒	PMI-D18-01A	3.2X50X100X2248	16.55	PMI-D18-01B	3.2X50X100X2552	18.78	4	4
DOOR FRAME COVER PLATE	㉓							2	2
DOOR KEEPER	㉔	PMI-D34-00	6.0X105X108	1.70	PMI-D34-00	6.0X105X108	1.70	1	1
SHIM (LARGE BRACKET GASKET)	㉕	PMI-D23-22	T1.0	0.02	PMI-D23-22	T1.0	0.02	4	8
HUCK-BOLT	㉖	PMI-D29-18	M10X6	0.01	PMI-D29-18	M10X6	0.01	4	4
LARGE SPLIT BUSH	㉗	PMI-D23-16		0.01	PMI-D23-16		0.01	8	8
SMALL SPLIT BUSH	㉘	PMI-D23-17		0.01	PMI-D23-17		0.01	8	8
RETAINER CATCH	㉙	PMI-D23-08A	Forging Type	0.09	PMI-D23-08A	Forging Type	0.09	4	4
RETAINER PLATE	㉚	PMI-D23-09A	Forging Type	0.20	PMI-D23-09A	Forging Type	0.20	4	4
BEARING BRACKET OUTER LARGE	㉛	PMI-D23-03		0.43	PMI-D23-03		0.43	8	8
BEARING BRACKET OUTER SMALL	㉜	PMI-D23-05		0.12	PMI-D23-05		0.12	8	8
