Ship Anchor Chain - Mooring Chain

Studded Mooring Chain

Mooring Chain Studded

Grade R3, R3S, R4, R4S, R5, R6

1.5 to 7 7/8 Inch Diameter Chain

38 to 200 mm Diameter Chain

ABS, BV, CCS, DNV-GL, LR, NK

Rina and RMRS Class Certification

Mooring Chain - Studded Drawing

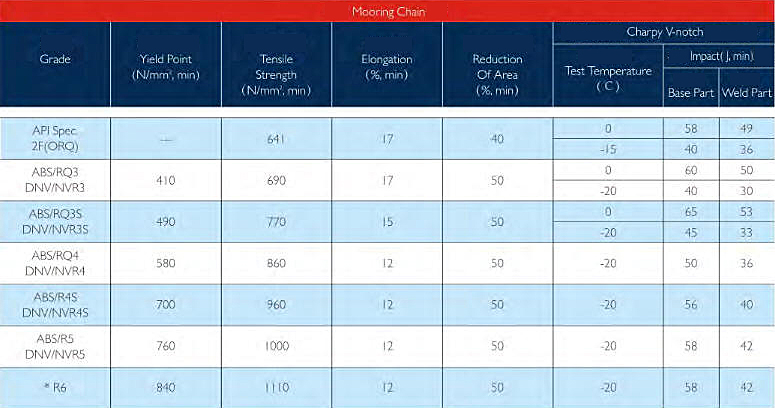

Mooring Chain - Studded Mechanical Properties

Ship Anchor Chain and Mooring Chain Weights

For Below Load Tables:

PL = Pulling / Working Load
BL = Breaking Load

C = Common Link
EL = Enlarged Link
E = End Link
SL = Studless Link

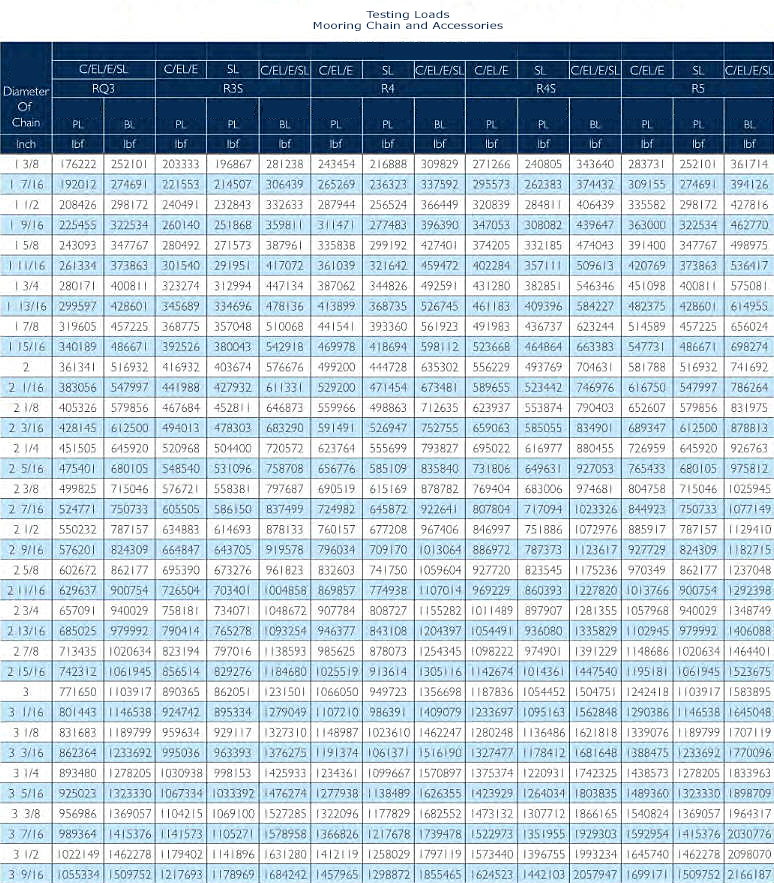

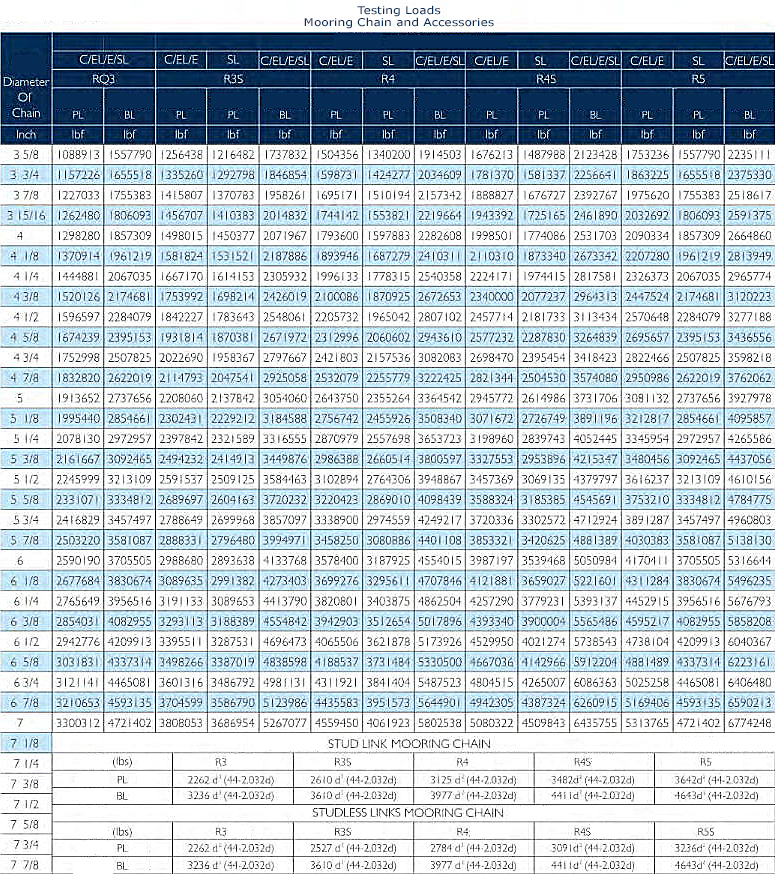

Testing Loads for Ship Mooring Chain


Ship Anchors	Chain Stoppers and Chain Releaser	Anchor & Mooring Chain Manufacturing
Steel and Stainless Steel	For Any Size and Grade Chain	Manufacturing Process
Class Society Approved as Requested	Bar and Roller Types
