15mm Aluminum Honeycomb Panels Sheet

Aluminum Honeycomb Panels

15mm Thick

1000, 1250, 1500 or 2000mm Wide

2000mm to 14,000mm Long

Outer Skins: 5005-H42 Aluminum

IN STOCK: 1250mm x 3000mm with Primer Coated Skins

Two Aluminum Skins Bonded to an Aluminum Honeycomb Core

Light Weight Construction Applications

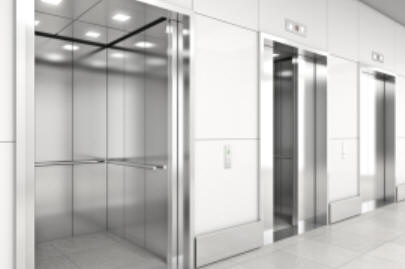

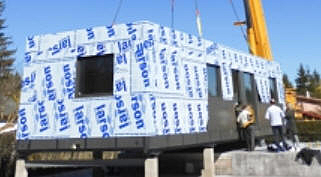

Ceilings, Walls, Floors, Clean Rooms, Medical, Ships, Rail, Trucks, Busses and More

Honeycomb Technology

- High Rigidity

- Lightness

- Flatness

- Compressive Strength

- Easy Machining

- Good Behavior in Fire and Smoke

Other Product Versions
Anti Bacterial	Pre Treated Core Designed for Clean Rooms
CPL	For Post Wood Veneer Lamination (IMO MED Certified)
Low Thickness	4mm Thick for Furniture or Wall Linings without Load Requirement
One Skin	One Aluminum Skin Bonded To Core for Bent & Laminated Products
Powder Coatable	Designed for Post Powder Coating (IMO MED Certified)
Anti Slip	For Floors in Areas with High Fall Risk
Ultra Flat	When Extreme Flatness is Needed
Ultra Core	High Performance In Corrosive or Humid Environments

Aluminum Honeycomb Panels Sheet

Product Features:

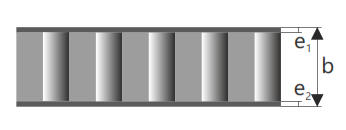

Total Thickness "b" (mm)	5.5	6	10	15	20	25	30	40
External Sheet Thickness "e1" (mm)	.5	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Internal Sheet Thickness "e2" (mm)	.5	.5	.5	1.0	1.0	1.0	1.0	1.0
Weight (kg/m2)	3.62	4.97	5.19	6.78	7.05	7.32	7.49	8.13
Length (mm)	2,000mm to 14,000mm (Tolerances -1/+6mm)
Width (mm)	1000, 1250, 1500, 2000mm (Tolerances -0/+2mm)

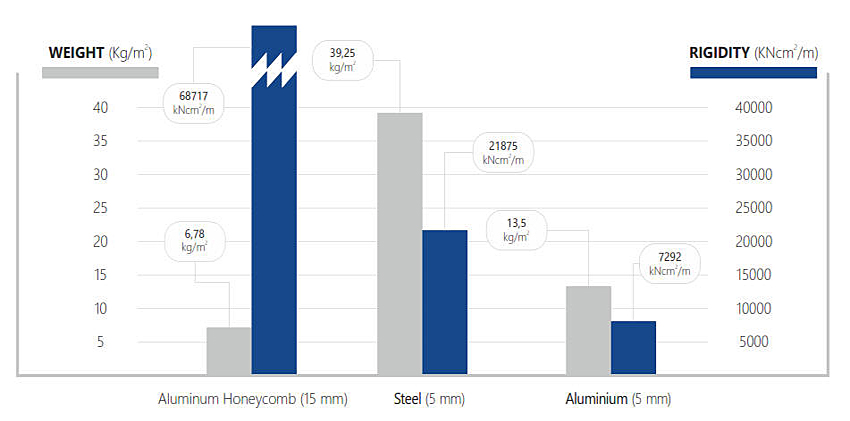

Rigidity (EI) (KNcm2/m)	3727	5519	22169	69964	143868	249289	247169	584560
Moment of Inertia (l) (cm3/m)	0.53	0.79	3.16	9.99	20.55	35.61	49.60	83.51
Section Modulus (w) (cm3/m)	2.39	2.63	4.92	13.32	20.55	28.49	33.06	41.75
Acoustic Isolation (Ra) (dBa)	19.5	19.6	20.3	21.18	22.16	23.21	24.3	26.15
Thermal Resistance (R) (m2K/W)	0.0065	0.0063	0.0074	0.0084	0.0089	0.0093	0.0099	0.011
The value of rigidity, moment of inertia and section modulus are measures of the transversal axis.
Some data in this brochure could be estimated or extrapolated. Contact us for exact values if critical.
