Wire Rope Fairleads - Marine Fair Lead

Vertical Fairlead

FV Series

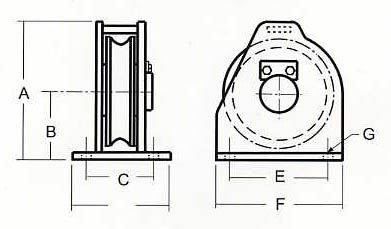

vertical fairlead sheave  vertical fairlead sheave

Cast Steel Sheaves - Compact Design
Precision Machined - Bronze Bushings
Easily Removable Shafts

Model Sheave Wire Rope Safe Dimensions
Number Diameter Size Work Load A B C D E F G
FV-1 6 in 1/2" 4,000 7 3 1/2 3 3/4 5 5 1/4 6 1/2 1/2
FV-2 8 in 5/8" 8,000 9 1/4 4 3/4 4 1/2 6 7 1/2 9 5/8
FV-3 10 in 3/4" 12,000 11 1/2 5 3/4 5 1/2 7 9 1/2 11 3/4
FV-4 12 in 7/8" 20,000 15 1/2 8 6 8 13 15 7/8
Larger Sizes available.
All measurements in inches and pounds.
