Wire Rope Fairleads - Marine Fair Lead

Dual Swivel Fairlead

BSF2 Series

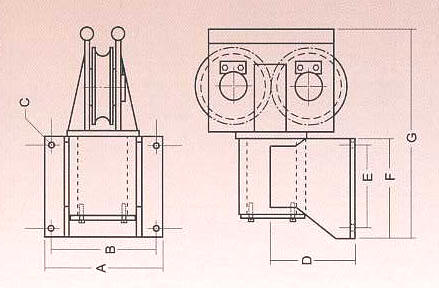

dual swivel fairlead sheave  dual swivel fairlead sheave

Cast Steel Sheaves - Compact Design
Precision Machined - Bronze Bushings
Easily Removable Shafts

Model Sheave Wire Rope Safe Work Dimensions
Number Diameter Size Load A B C D E F G
BSF2-1 6 1/2 7500 9 7 3/4 5/8 6 1/2 6 3/4 8 16 1/4
BSF2-2 8 5/8 11000 9 3/4 8 1/4 3/4 8 3/4 7 1/2 9 19
BSF2-3 10 3/4 16000 10 3/4 9 1/4 3/4 11 8 1/2 10 22 1/2
BSF2-4 12 1 20000 12 10 1/4 7/8 15 9 1/4 11 28
BSF2-5 14 1 1/4 contact PM&I
BSF2-6 18 1 1/2 contact PM&I
BSF2-7 22 1 3/4 contact PM&I
All measurements in inches and pounds.
