Raised Container Foundation

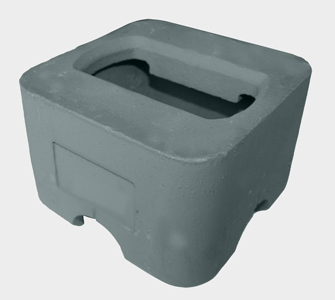

AC-B1 Single Raised Container Foundation

Class Society Approved: ABS, DNV-GL, CCS and Others

Raised Container Foundation Single

AC-B1 Single Raised Container Foundation

Purchase ONLINE Small Quantities of Container Lashing

Part Numbers:	Height	Status
AC-B1/110 (Standard)	110mm	In Stock
AC-B1/XXX	XXX As Needed	Custom Made

Weld to the deck or hatch cover.

Industry Standard is 110 mm height

Special height available upon request

Elongated Hole Foundations available here: Elongated Foundations

Counter parts: Container Securing Twistlocks or Container Midlock

Type and Test Class Approved on Request

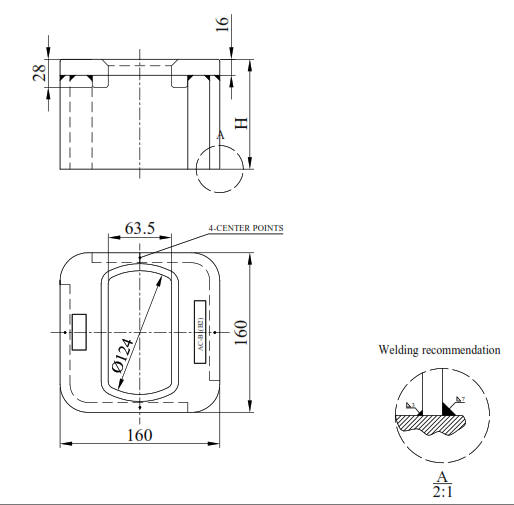

AC-B1 Single Raised Container Foundation

Return to Container Lashing Main Page

Purchase ONLINE Small Quantities of Container Lashing

Download Complete Container and Cargo Securing Catalog with Drawings

Container Lashing Design: Ship or Barge

Cargo Securing Manual Approval By Class Society

Container Ship Hatch Covers and Lashing Bridges

How Do Container Ships Work?

Other Related Products:


Container Lashing	Cargo Straps	Cargo Chains & Tensioners	Cargo Lashing Points


Container Lifting & Towing	New Shipping Containers	Shipping Container Parts	Shipping Container Casters

Similar Design and Function Cross Reference:

GLS AC-B1

MacGregor TF-11

MacGregor TF-AFC-11

German Lashings RS-11.1

SEC SF-1

SEC SF-C1

Lucky Sea A5-1C-H

SC Lashings RF-1

All Set D92A

Peck & Hale F771

TEC FE-72-1

Taiyo I-50

Koei

MEC A4.1
