Raised Cloverleaf Cargo Lashing Point

CA-E7 According to NavSea Drawing 804-1213717

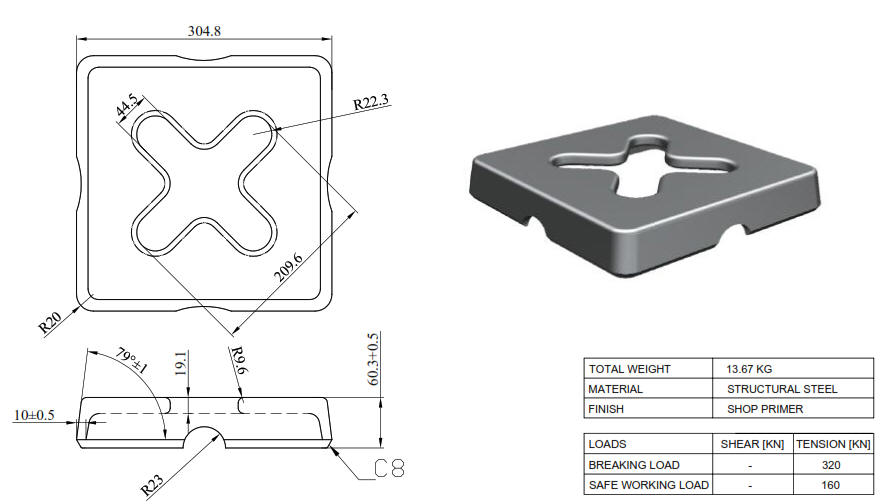

Cargo Lashing Points: Raised Cloverleaf: NavSea 804-1213717

CA-E7 Raised Cloverleaf Lashing Point



Breaking Load: Tension: 320 KN
Working Load: Tension: 160 KN



3/4 Raised Box Type Deck Socket
According to NavSea 804-1213717 with Exception of Cast Product

Forged Product on Special Request.



Counter Part is the Elephants Foot or the Speed Lash with Elephants Foot.

Cargo Lashing Points: Raised Cloverleaf: NavSea 804-1213717



Other Equivalent Products:
Peck and Hale F249-2H
