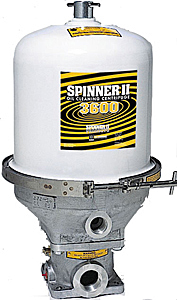

Spinner 2 Oil Filter

Spinner ii Oil Centrifuge

Model 3600

Up to 16 GPM or 60.6 Liters Per Minute

Re-Useable Rotor

Paper Insert to Assist in Cleaning

With or Without LCB*

Up to 6,000cc of Contaminants

*The LCB is the Level Control Base

The LCB allows for parallel or slightly uphill oil return to the sump.

It also allows for a much smaller return line.

The LCB requires a compressed air sources for operation.

Product should be sized to circulate oil sump 4 to 5 times per hour.

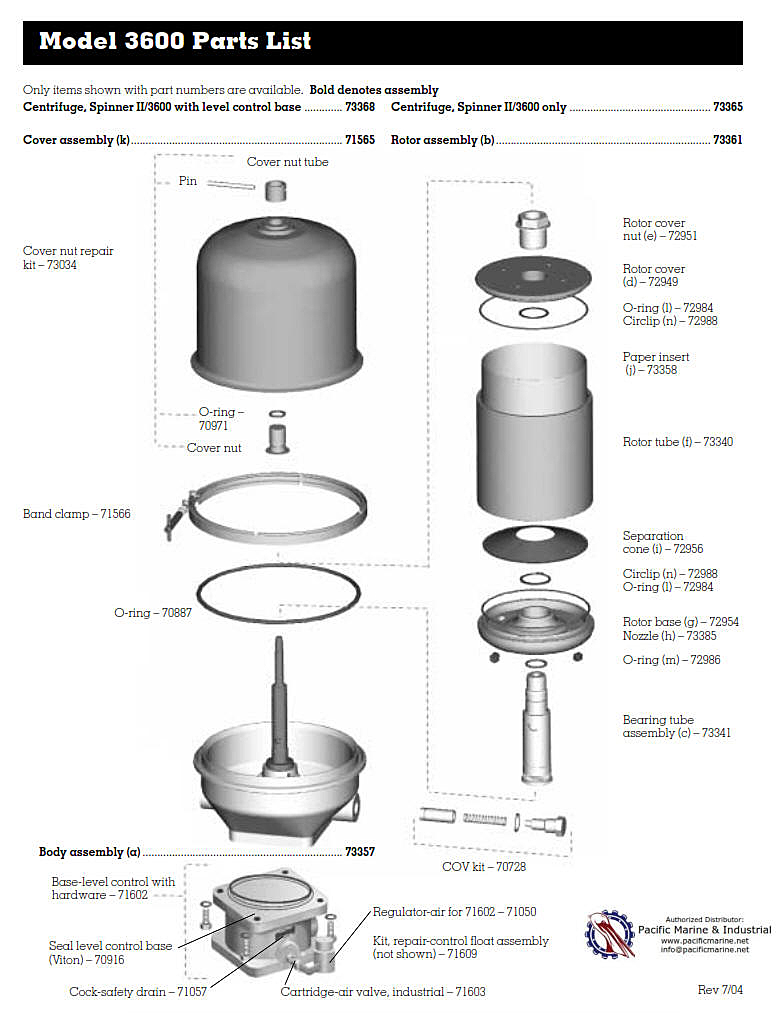

Model 3600 Spinner 2 Oil Filter Manual and Parts List

Purchase ONLINE Spinner 2 Oil Filter and Parts

Spinner 2 Oil Filter Model Application Guide

How the Spinner 2 Oil Filter Works

Spinner 2 Oil Filter Installation Photos - Various Applications

Application Case Studies - Spinner 2 Oil Filter

Centrifugal Oil Purification System - Removes Particles Down to .1 Micron

Extends Oil Change Interval - Extends Engine Life

Operates on engine oil pressure

For: Engine lubricants, gear oils, machining fluids, hydraulic oils, quench oils

Engine mounted or side mounted

Operates on oil pressure only

Remove particles down to 1/10 of a micron

Remove carbon and soot

Use in addition to your full flow filter system

Stand alone pump assisted units available

Protects Machinery:

Reduces wear up to 50%

Increases engine / component life

Helps reduce frequency of maintenance and repair

Extends Operating Intervals

Keeps fluids and additives effective longer

Prolongs full flow filter life

Centrifuge requires minimal service

Eliminates Waste

Permanent, cleanable and reusable

No media or filter element to replace

Protects the environment by reducing disposable waste

Sample of Dirty Spinner Bowl

Remove particles down to .1 micron
