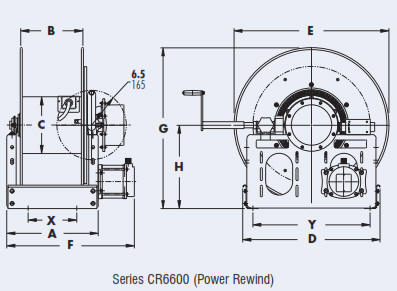

Series CR Electric Reel

To Handle Live Electric Cable

Manual and Power Rewind

• Gear-driven crank rewind.

• Chain and sprocket drive powered by electric, compressed air, or hydraulic motor.

• Auxiliary rewind and pinion brake standard.

• Consult factory for other brakes.

• 3-conductor 45 amp 600 volt collector assembly with #8 gauge wiring.

• Double brushes per circuit. Brushes are copper graphite, copper alloy rings.

• Silver collector assemblies are available.

• Rollers and roller mounting brackets are accessory items.  Specify roller position.
