Hannay Reels

Hannay Sewer Hydro Jetting Hose Reel

AT1100 and AT1200 Portable Hose Reel

1100 and AT1200 Portable Hose Reel

AT1100/AT1200 Portable Hose Reel

For 3/8 through 1 Inch ID Hose

Up to 3000 psi and 400 Degrees F

Manual Rewind



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



• Continuous flow reels with swivel joint inlet, fluid hub, outlet riser.

• Standard with pneumatic tires and cam-lock brake.

• Direct crank rewind is permanently attached.

• One-piece foot, and removable steel handlebar.

• GH Prefix to model # (e.g. GH1100, GHAT1200) includes garden hose thread on outlet, 5' lead-in hose, hose end clips.

• Consult factory for other pressures & temps.

• Optional folding handle – for compact storage.


Model AT1100

 Standard inlet 90° ball bearing swivel joint

1/2" female NPT threads.

• Standard outlet is 1/2" female NPT threads.

• Pressures to 3000 psi (207 bar).

• Temperatures from +20 Degree F to +400 Degree F (-7° C to +204° C).


Model AT1200

Standard inlet 90° balance pressure swivel joint 1" female NPT threads.

• Standard outlet is 1" female NPT threads.

• Operates at pressures to 1000 psi (69 bar).

• Temperatures from -40° F to +250° F (-40° C to +121° C).

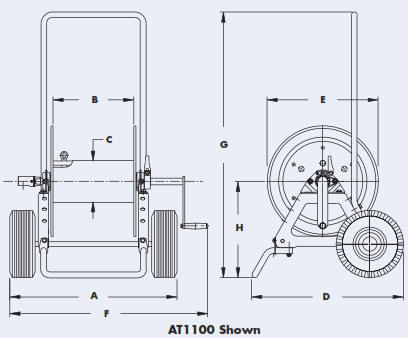

AT1100 Pumper Cleaner Hose Reel Drawing

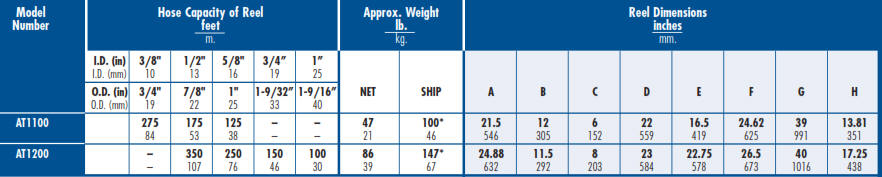

AT1100 Pumper Cleaner Hose Reel - Chart

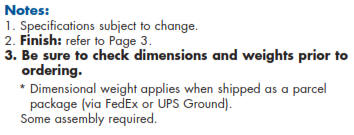

AT1100 and AT1200 Pumper Cleaner Portable Hose Reel- Notes
