Hannay Reels

Hannay Diesel Fuel Hose Reel

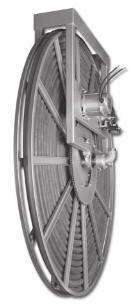

Series IV 5000 Inverted Diesel Hose Reel

Series IV 5000 Petroleum Hose Reel

Series IV 5000 Petroleum Hose Reel

To Handle 1 3/8 Through 2 Inch ID Hose

Single Wrap Power Rewind



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices


Features:

To handle single 1-3/8" I.D. through 2" I.D. hose.

• Effortless and fast rewinding, wrapping, guiding of hose.

• Chain and sprocket drive powered by electric, hydraulic, compressed air motor.

• Auxiliary crank rewind is optional.

• 12 volt rewind, comet brake standard.

• Air brake optional.

• 5100 series - 90° ball bearing swivel joint 1-1/2" female NPT threads, 2" victaulic groove, flanged riser with 1-1/2" female NPT threads.

• 5200 series - 90° ball bearing swivel joint 2" victaulic groove, flanged riser with 2" female NPT threads.

• Inlet, hub assembly is aluminum.

• Joint & riser ductile iron for petroleum fuel.

• Pressures to 600 psi (41 bar).

• Temperatures from -60° F to +175° F (-51° C to +79° C).

• Standard with a reduction unit only. Electric clutch units optional.

• Consult PM&I for other pressures & temps.


Series IV 5000 Petroleum Diesel Hose Reel Inverted Drawing

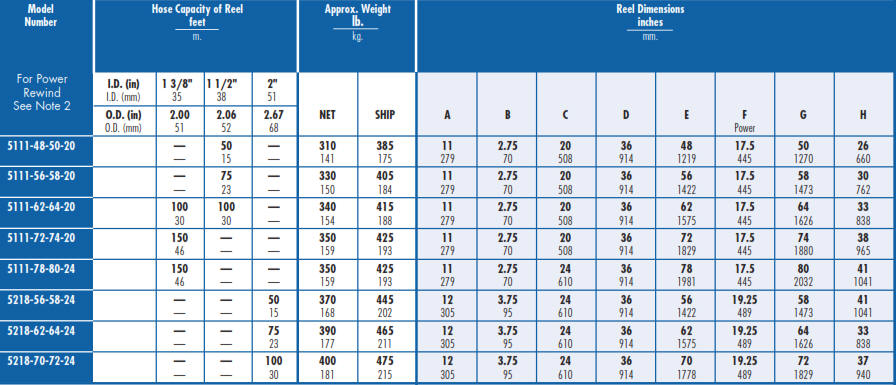

Series IV 5000 Inverted Petroleum Hose Reel Diesel Chart

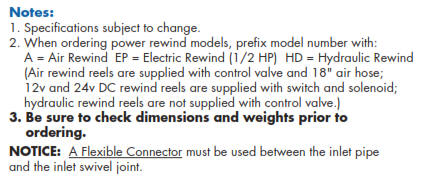

Series IV 5000 Petroleum Hose Reel Inverted Notes
