Hannay Reels

Hannay Aviation Fuel Hose Reels

Series 2 Inch Hose Reel

series 2 inch hose reel



To handle single 1-1/2" or 2" I.D. hose.

Manual or Power Rewind


Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices


Features:

Gear-driven crank rewind, or chain and sprocket drive powered by an electric, hydraulic or compressed air motor.

Optional auxiliary crank rewind for power reels.

Crank rewind reels supplied with pinion brake and power rewind reels with a comet brake.

90° ball bearing swivel joint with 2" victaulic.
Flanged riser with 2" female NPT threads.
Other sizes and/or threads can be furnished and must be specified.
Standard inlet, riser, hub assembly are aluminum for jet fuels.

Stainless steel, at extra cost.

Rollers and roller mounting brackets are accessory items. Specify roller position.

Pressures to 150 psi (10 bar).

Temperatures from -20° F to +225° F (-29° C to +107° C).
Consult factory for other pressures & temps.

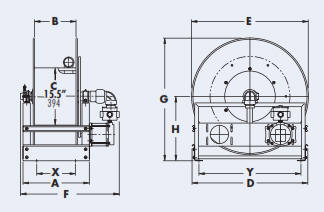

hose reel series 2 inch drawing

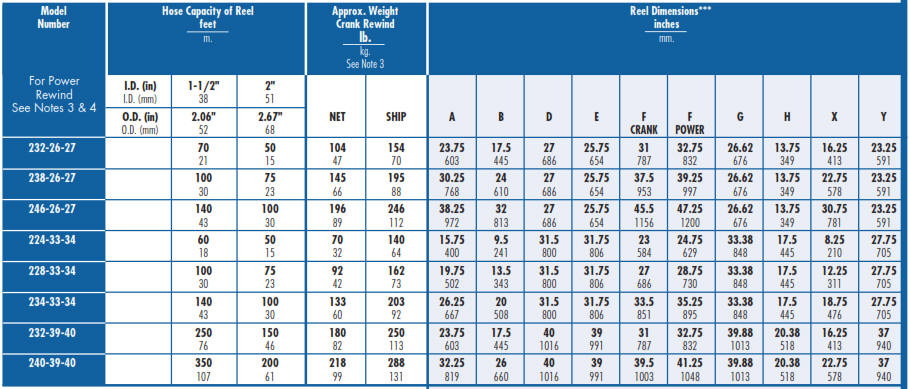

hose reel series 2 inch chart

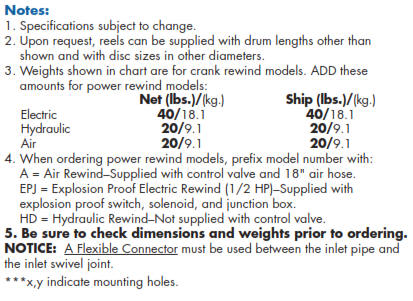

hose reel series 2 inch notes
