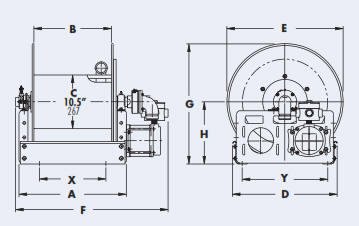

Aviation Fuel Hose Reels

aviation fuel hose reel

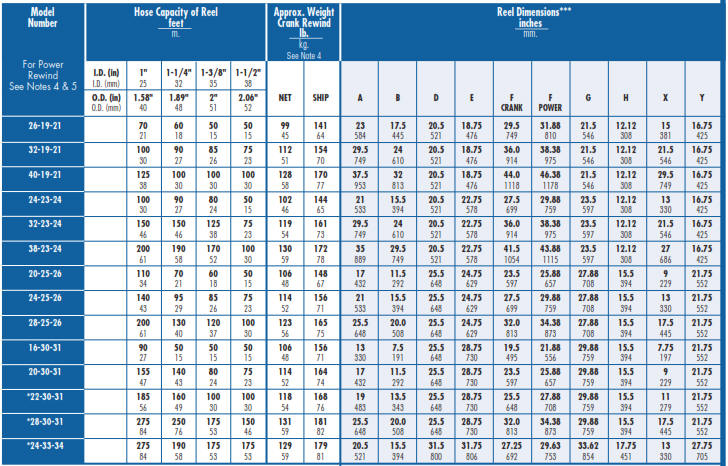

For Hose Size 1 Inch Through 1 1/2 Inch ID

Manual Or Power Rewind

Features:

A strong, heavy-duty reel.

Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic or compressed air motor.

Optional auxiliary crank rewind for power rewind reels.

Crank rewind reels supplied with pinion brake and power rewind reels with a comet brake.

90° ball bearing swivel joint with 1-1/2" female NPT threads and 2" victaulic groove.

Flanged riser with 1-1/2" female NPT threads.

Other sizes and/or threads can be furnished and must be specified.

Standard inlet, outlet riser, hub assembly are aluminum for jet fuels.

Stainless steel, at extra cost.

Rollers and roller mounting brackets are accessory items. Specify roller position.

Pressures to 600 psi (41 bar)

Temperatures from -40°F to +175° F (-40° C to +79° C).

Consult factory for other pressures & temps.

Chain guards are available upon request, must be specified.
