Basket Strainer

Cast

150B1 Series, 2 to 12 inches

Cast Bronze, Carbon Steel, Stainless Steel

FF Flanged

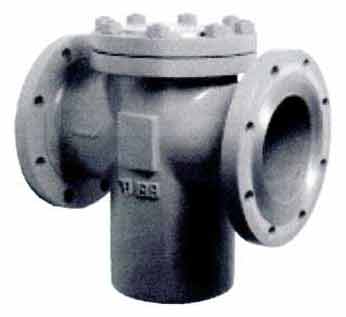

150B1 Simplex Basket Strainer
ASME B16.5, B16.24, B16.34 / Straight Flow

Pressure vs. Temperature Chart Pressure Drop vs. Flow Rate Open Area Ratios

Optional Quick Opening Covers

Materials of Construction
  Bronze Carbon Steel Stainless Steel
Body Bronze B62 A216-WCB A351-CF8M
Cover Bronze B62 A216-WCB A351-CF8M
Screen 304 SS 304 SS 304 SS
Plug Bronze B16 A105 A182-316
Gasket Teflon Teflon Teflon
Bolt / Stud Bronze B16 A193-B7 A193-B8-1
Nut Nonferrous A194-2H A194-B

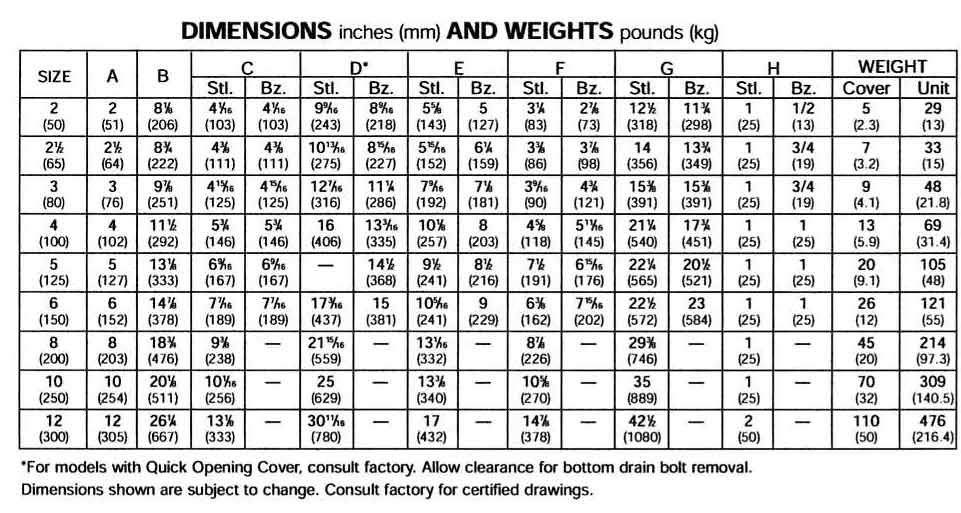

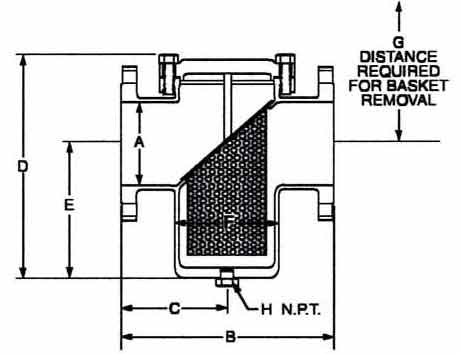

150B1 Simplex Strainer

150B1 Simplex Strainer
