Basket Strainer

Cast

125B1 Series, 2 to 20 inches

Cast Iron, FF Flanged

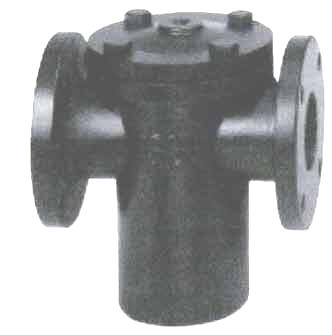

125B1 Cast Simplex Basket Strainer

ASME B16.1  /  Straight Flow



Pressure vs. Temp Chart

Pressure Drop vs. Flow Rate

Open Area Ratios



Optional Quick Opening Covers



Materials of Construction

Body

Cast Iron A126-B

Cover

Cast Iron A126-B

Screen

304 SS

Plug

Cast Iron A126-B

Gasket

Graphite

Bolt / Stud

A307-B

Nut

A563

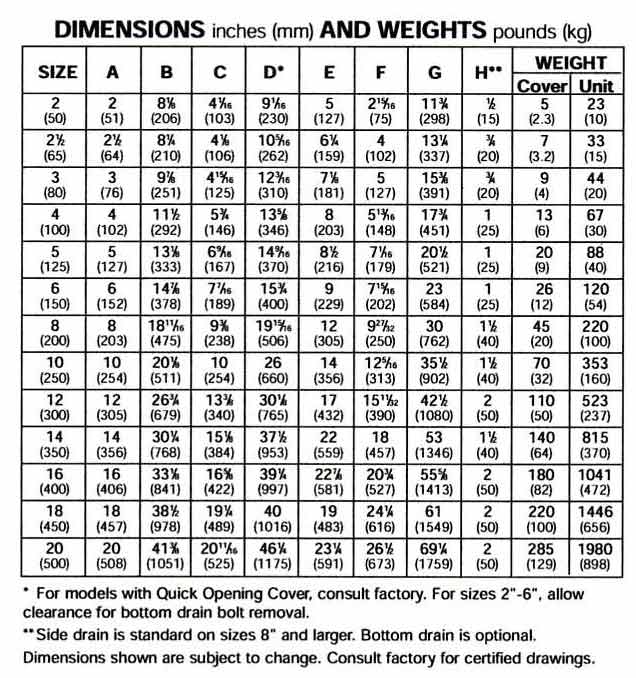

125B1 Cast Simplex Basket Strainer

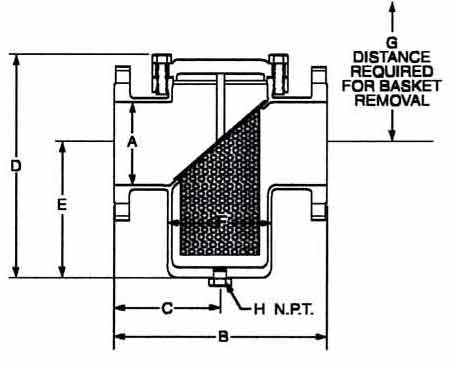

125B1 Cast Simplex Basket Strainer
