Basket Strainer

Fabricated

FB1 Series
Pressure Drop vs. Flow Rate Open Area Ratios Pressure vs. Temp Chart

Standard cover is bolted
Cover lifting lug standard on 10" sizes and larger.
Class 150# and 300# flanges are standard.
Class 600# and higher available upon request.
Various screen openings available.

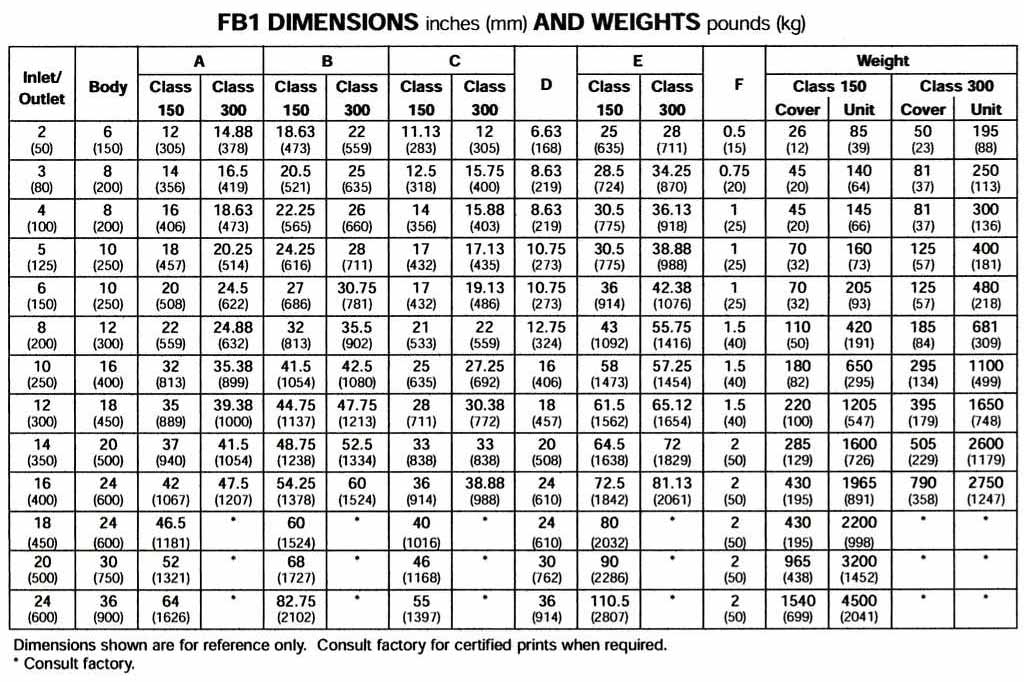

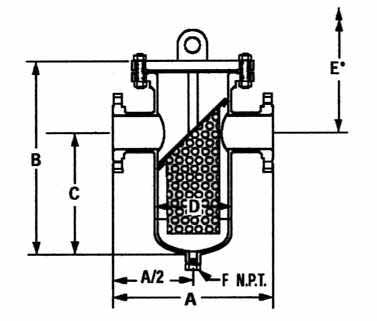

FB1 Fabricated Basket Simplex Strainer

FB1 Fabricated Basket Simplex Strainer
