Shipping Container Lifting Equipment

40 Foot Container Spreader Bar Frame

Automatic or Manual

Shipping Container Lifting Equipment: Container Spreader Bar

Automatic Container Spreader Operation Video

Type	Model	Size	SWL	Weight
Automatic Container Lifting Spreader	FS-40F-36T-A	40 Foot	36 Tons*	2.4 Tons
Manual Container Lifting Spreader	FS-40F-36T-M	40 Foot	36 Tons*	2.4 Tons

*Higher Container Spreader working loads are available.

Modifications available.

The standard container spreaders are supplied with:

Automatic Function (No Ground or Riding Personnel) Only the Crane Operator

Including Bull Ring and All Associated Wire Slings

Safety Yellow Paint

Side Marked with WLL

Container Guides (Assist in Lowering To Container Top)

Class Approval On Request

Options and Modifications Available:

Increase in Safe Working Load

Forklift Pockets

Wire Stowage Bollards

Workman Walkways

Container Balance Mechanism

Units for Double Crane Hook

Hot Dip Galvanization

List of Customers Using PM&I Shipping Container Lifting Equipment

Shipping Container Lifting Equipment Catalog

Purchase ONLINE Select Shipping Container Lifting Equipment

Shipping Container Lifting Equipment: Container Spreader Bar

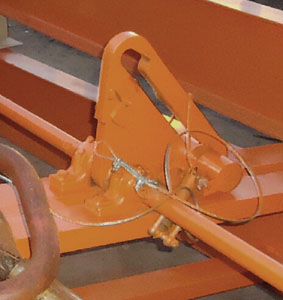

Container Lifting Spreader Automatic Operation Mechanism

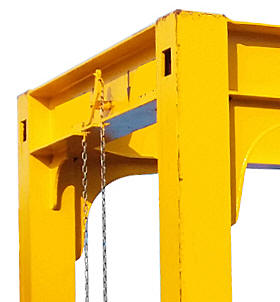

Container Lifting Manual Operation Mechanism

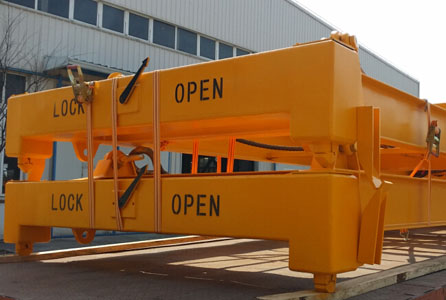

Container Lifting Spreader Open and Closed Indicator

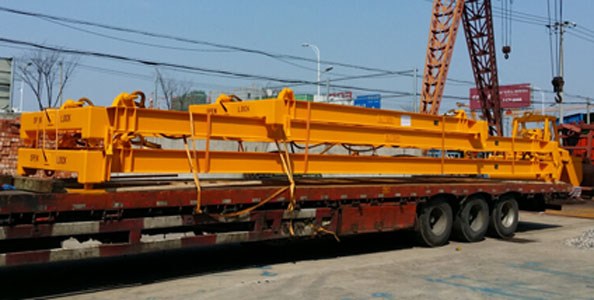

Container Lifting Spreaders On Truck for Transport

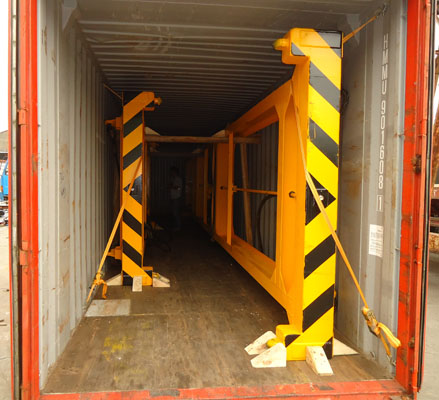

Container Lifting Spreaders Packed for Ocean Transport

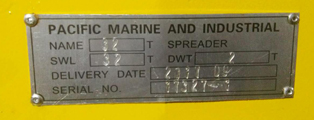

PM&I Name Plate

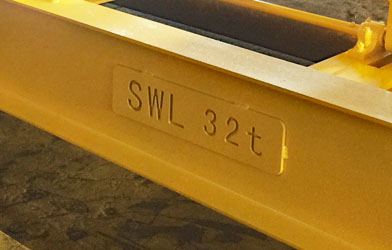

SWL Side Mark

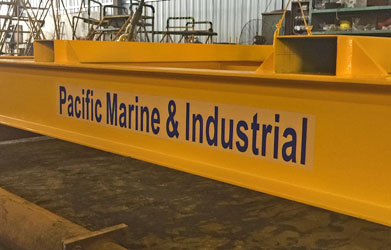

PM&I Side Mark
