Pipe Floats and Hose Float

Specifications Catalog

Pipe Floats and Hose Floats  Pipe Floats and Hose Floats



Light Weight and Large Buoyancy

Shock Resistant

Acid and Alkali Resistant

Easy to Install

Low Maintenance Cost

Long Life

Working Temperature: -60 to 80 C

Use with: Rubber Hose, HDPE Pipe, Steel Pipe and More



Pipe Float and Hose Float Specifications Catalog



Pipe Float and Hose Float Project Images



Pipe Float and Hose Float Shipping and Packing Images



Information Required for Pipe Float and Hose Float Quotations

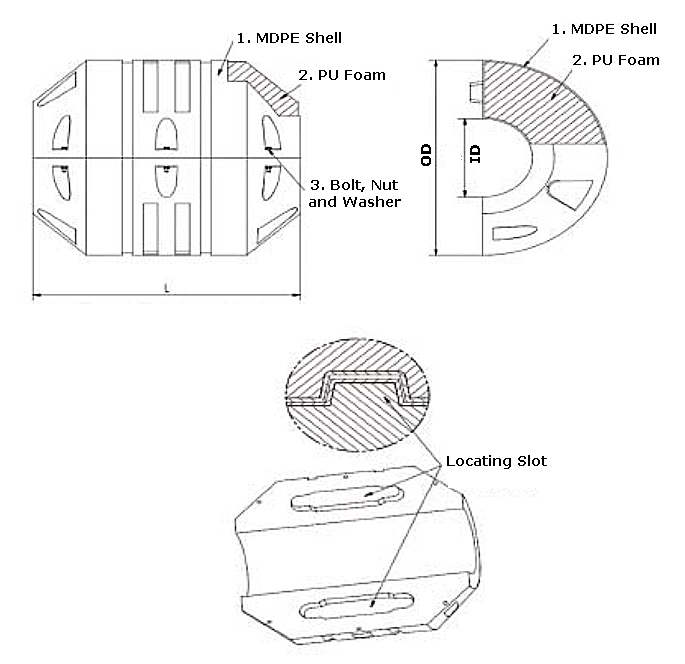

Pipe Floats and Hose Floats


Model

OD x L - ID

ID - Inner

Diameter

mm

OD - Outside Diameter

mm

Length

mm

Wall

Thickness

mm

Buoyancy

kg

P3060-12

120

300

600

5

25

P3641-5

50

360

410

5

25

P3645-5

50

360

450

5

25

P30100-3

30

300

1000

5

60

P5075-7

70

500

750

4

90

P4590-15

150

450

900

5

120

P5080-15

150

500

800

6

130

P5080-20

200

500

800

6

130

P5080-25

250

500

800

6

130

P5590-28

280

550

900

7

190

P7080-32

320

700

800

7

220

P7080-36

360

700

800

7

220

P60100-3

30

600

1000

7

220

P60100-10

100

600

1000

7

220

P80110-3

30

800

1100

6

520

P80110-5

50

800

1100

6

520

P80110-50

500

800

1100

6

520

P100100-33

335

1000

1000

8

620

P110140-22

220

1100

1400

8

1200

** Other Sizes Available


Properties of Pipe Float Body:

Item Technical Index of    Item Inside Technical
Hull   Index
Tensile Strength ≥13.1Mpa Water Absorption 1‐2g/100cm2
Break Elongation ≥11.1% Breaking Strength 0.08‐0.1Mpa
Impact Strength ≥32.4KJ/m2 Breaking Elongation 4‐6%
Bending Strength ≥15.7Mpa Compressive 0.1‐0.24Mpa
Strength
Weather   Resistance Break Elongation %≥ 10
After     total     aging 20℃mm≥     Oxidative    10
energy  ≥3.5GJ/M2 Induction Time 200℃mm≥
