Navigational Aids to IALA Standards

Long Range LED Flashing Beacon MBB 500

Long Range LED Flashing Beacon

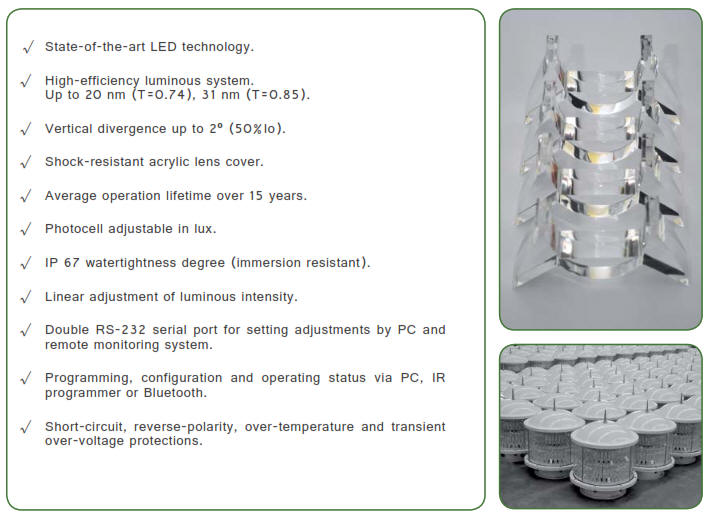

The MBB 500 is a long-range LED flashing beacon with a great optical efficiency and low consumption.



Its luminous source consists of high-intensity LED diodes, obtaining a range of up to 31 nautical miles.



Intended to be placed in on-shore aids-to-navigation locations, with a minimum maintenance.

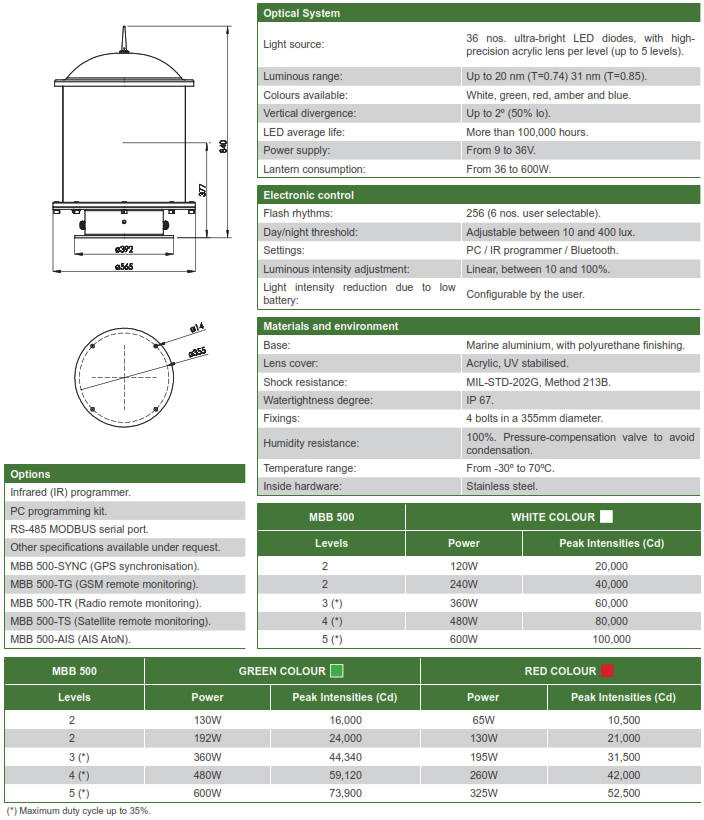

Fitted with 36 nos. optical elements by level and up to 5 levels, arranged in a circular pattern in a 500mm diameter,

made from UV resistant methacrylate and protected with a shock-resistant acrylic lens cover.



Manufactured with high-quality and resistant materials, the

MBB 500 provides a long service life under the harshest marine conditions.



Designed according to IALA Recommendations.



Long Range LED Flashing Beacon



Long Range LED Flashing Beacon
