Lifting Points

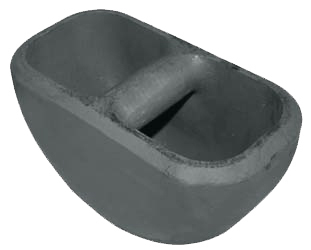

Flush Steel Lifting Pocket Point

PAL-M1-LIFT

Flush Steel Lifting Pocket

7.2 Metric Ton Safe Working Load

15,840 Lbs. Safe Working Load

Calculations:

36 Metric Ton Breaking Load with 5:1 Safety Factor

Welding:

Safe and approved welding process is the responsibility of others.
