Lifting Clamps and Accessories

PDVC Vertical Lifting Clamp

PDVC Vertical Lifting Clamp

PDVC Vertical Lifting Clamp

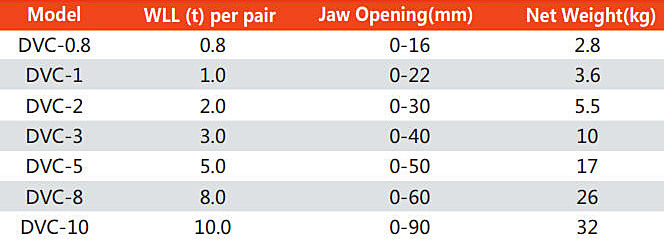

From 0.8 to 10 Metric Tons Capacity Per Pair

From 0 to 90mm Jaw Opening

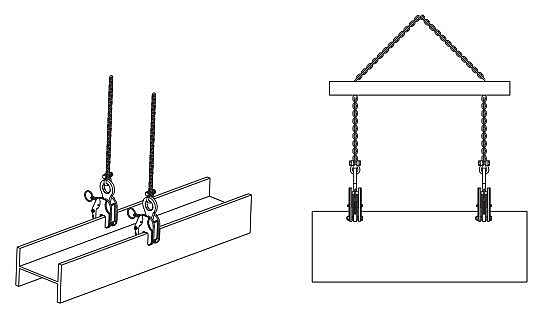

● Standard design clamp for vertical lifting of steel plates and steel structures.


● The spring- loaded tightening mechanism assures a positive initial clamping force.


● Clamps include safety mechanism to stop slippage when lifting force is applied and when load is being lowered.


● The clamp can be locked in both open and closed position.


● Manufactured from high quality carbon steel.


● High- frequency quenching of die- forged alloy steel gives greater durability to the cam.


PDVC Vertical Lifting Clamp

PDVC Vertical Lifting Clamp
