Lifting Clamps and Accessories

PDPD Horizontal Lifting Clamp

PDPH Horizontal Lifting Clamp

PDPD Horizontal Lifting Clamp

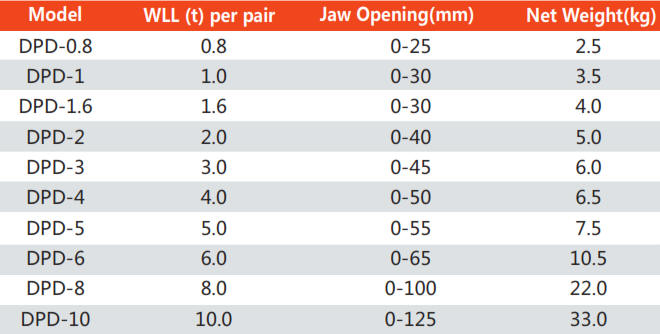

From 0.8 to 10 Metric Tons Capacity Per Pair

From 0 to 125mm Jaw Opening


● Suitable for lifting and transport of steel plate and beams in the horizontal position.


● Manufactured from high quality carbon steel.


● Avoid snatch or shock loading.

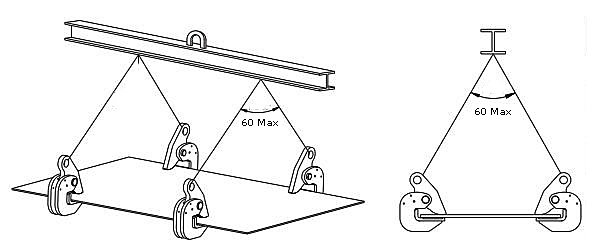

● The working load limit is for use in pairs with a lift angle of 60°.


● In lifting operations the clamps can be used in pairs or multiples.


● The screw jaw can be replaced.  Safety lock button included.


PDPD Horizontal Lifting Clamp


PDPD Horizontal Lifting Clamp
