Track Drive Gearboxes

Planetary Track Drives

track drive gearbox

HD Series Track Drives



The HD Series Hoist Drive is a quiet, efficient drive

unit designed specifically for travel/track and winch

applications. Its compact, multi-stage planetary gearbox

design and full complement of tapered roller bearings

outperforms competitive models while offering a durable,

long service life main bearing system.


Features:

44,254– 81,132 ft-lb ( 60,000 N·m–110,000 N·m) output torque

Integral multi-disc static brake

Motor input options

Multiple gear ratio options

Optional piston motor mounting inputs

Industry standard gearbox mountings


Benefits:

Suitable for track, drum, or wheel drive applications

Replaces popular competitive models

Ends need for supporting bearing for drum drives

High efficiency/low decibel operation

Ease of serviceability

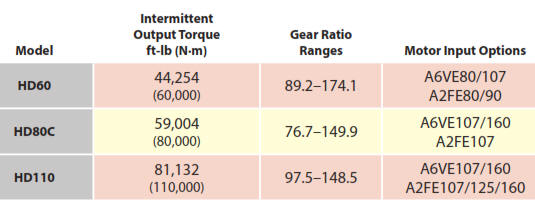

HD Series Track Drive Gearboxes
