Swing Drive Gearboxes

Planetary Swing Drive

swing drive gearbox

SD Planetary Swing Drive


The compact and durable SD Planetary Swing Drive offers superior

performance in a wide range of cost-effective configurations that provide

turnkey power solutions for utility and construction applications.

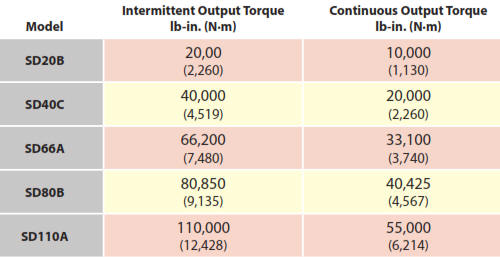

20,000–110,000 lb-in. (2,260–12,428 N·m) output torque range

Standard SAE motor mounting flanges/input shafts

Static/dynamic brake options

Heat-treated alloy steel ring gear

High-strength pinion

Heavy-duty bearing design

Optional eccentric ring for gear backlash adjustment

Optional Load Sense system (select models)



Readily available torque and motor options

Robust side-load capacity

Low-decibel operation

Long-lasting, reliable performance

Designed for minimal backlash


SD Planetary Swing Drive
