Hydraulic Winch-Hoist
8000 lb. Max Line Pull
Model BG8B-34039-01-1
PACCAR Braden

Hydraulic Winch or Hoist
8000 lb. Max Line Pull
PACCAR Braden

Recommended Hydraulic Supply*
Hydraulic Pressure: 2,418 PSI
Hydraulic Flow Rate: 65 GPM
* Less pressure and/or flow can be used with reduced performance.

Rope Diameter: 1/2 Inch**
** Other rope diameters can be used with altered performance

Permits "Man Rider" Testing and Inspection Per API 2C for Offshore Cranes

If you need to alter the Hydraulic Pressure or Flow or the Wire Size contact info@pacificmarine.net for performance chart.

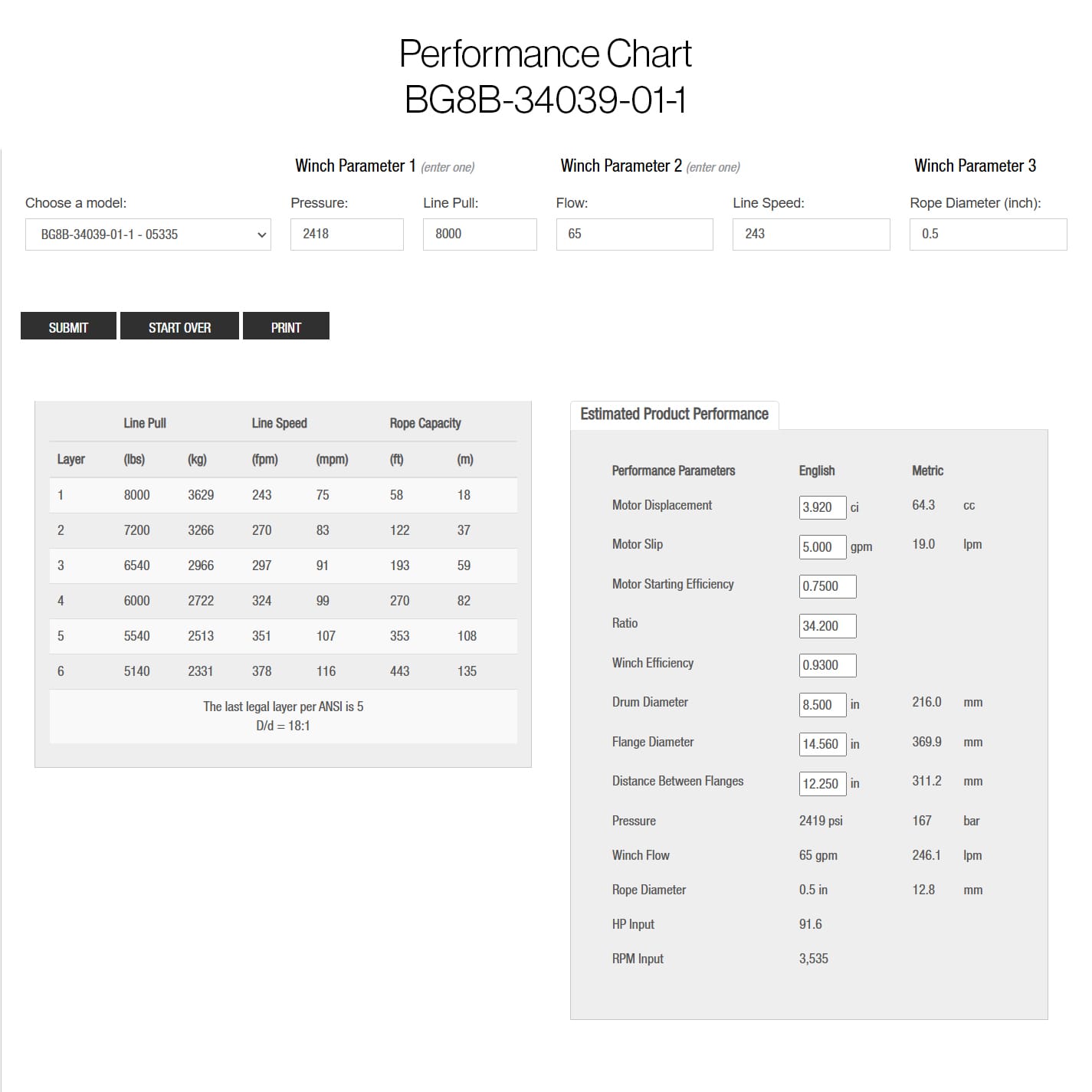

Performance Chart:
Layer 1: 8,000 lbs. at 243 ft./min
Layer 2: 7,200 lbs. at 270 ft./min
Layer 3: 6,540 lbs. at 297 ft./min
Layer 4: 6,000 lbs. at 324 ft./min
Layer 5: 5,540 lbs. at 351 ft./min
Layer 6: 5,140 lbs. at 378 ft./min

*Last legal layer per ANSI is Layer 5
*Specifications are representative of common configuration.

• Cable wedge anchor system
• Cast iron ductile base
• Counterbalance valve and multi-disc static brake for dynamic braking enables smooth operation and safe load handling
• Rugged and compact design
• Sealed, high-efficiency planetary reduction gearing for continuous-duty performance
• Multi-disc Brake - Spring applied and hydraulically released
• Anti-friction bearings for maximum efficiency


Other models available, subject to lead time.

Email us to inquire: info@pacificmarine.net


The BG Series planetary hoist / winch is a high performance product designed to provide many years of service.
The BG series covers the smaller range of hydraulic hoists (can also be used as a hydraulic winch).

There are many BG models available from 3,000 to 8,000 lbs. rated capacity.

Contact info@pacificmarine.net for help in sizing a unit.
