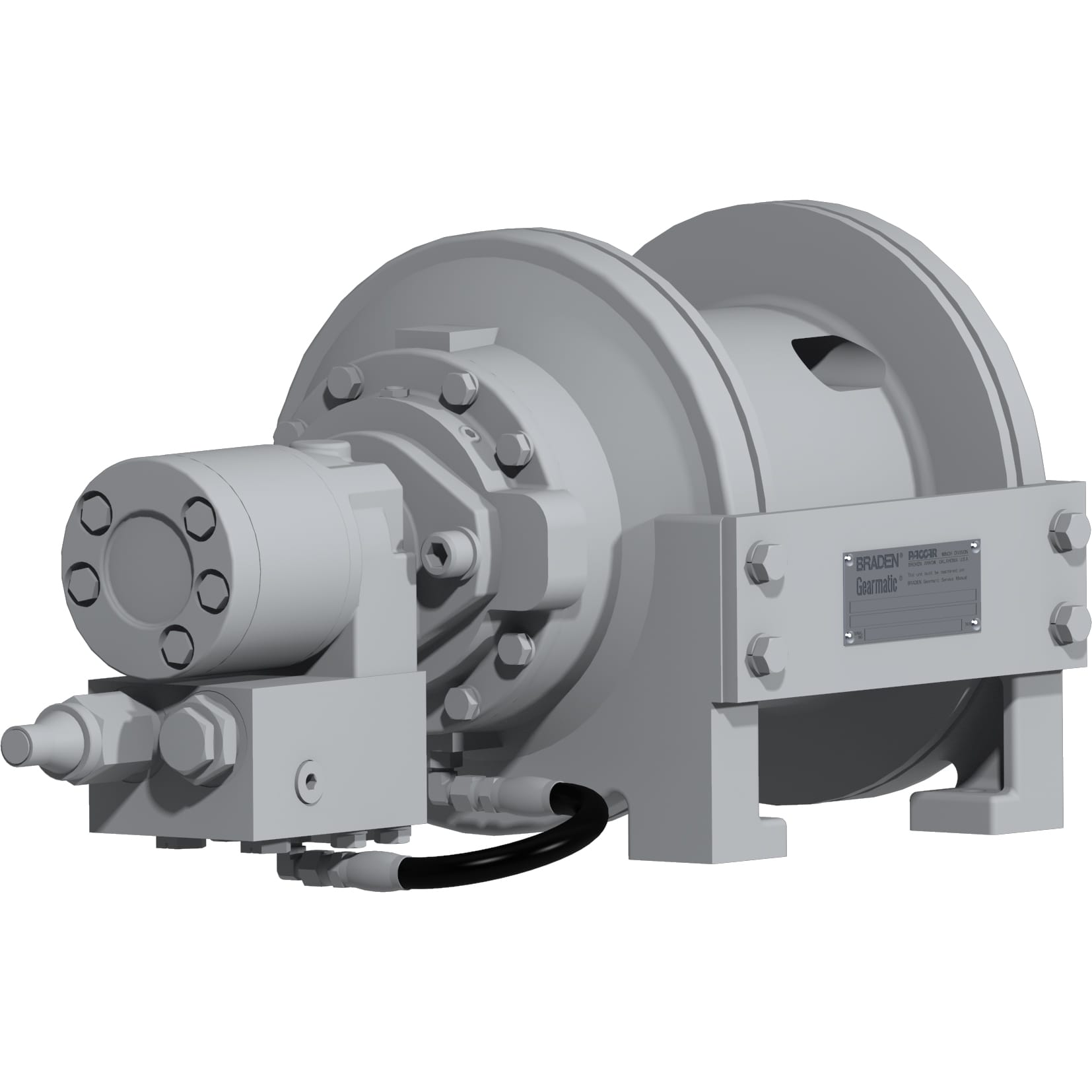

Hydraulic Winch-Hoist
3000 lb. Max Line Pull
Model BG3B-05080-01
PACCAR Braden

Hydraulic Winch or Hoist
3000 lb. Max Line Pull
PACCAR Braden

Recommended Hydraulic Supply*
Hydraulic Pressure: 2,488 PSI
Hydraulic Flow Rate: 15 GPM
* Less pressure and/or flow can be used with reduced performance.

Rope Diameter: 3/8 Inch**
** Other rope diameters can be used with altered performance

If you need to alter the Hydraulic Pressure or Flow or the Wire Size contact info@pacificmarine.net for performance chart.

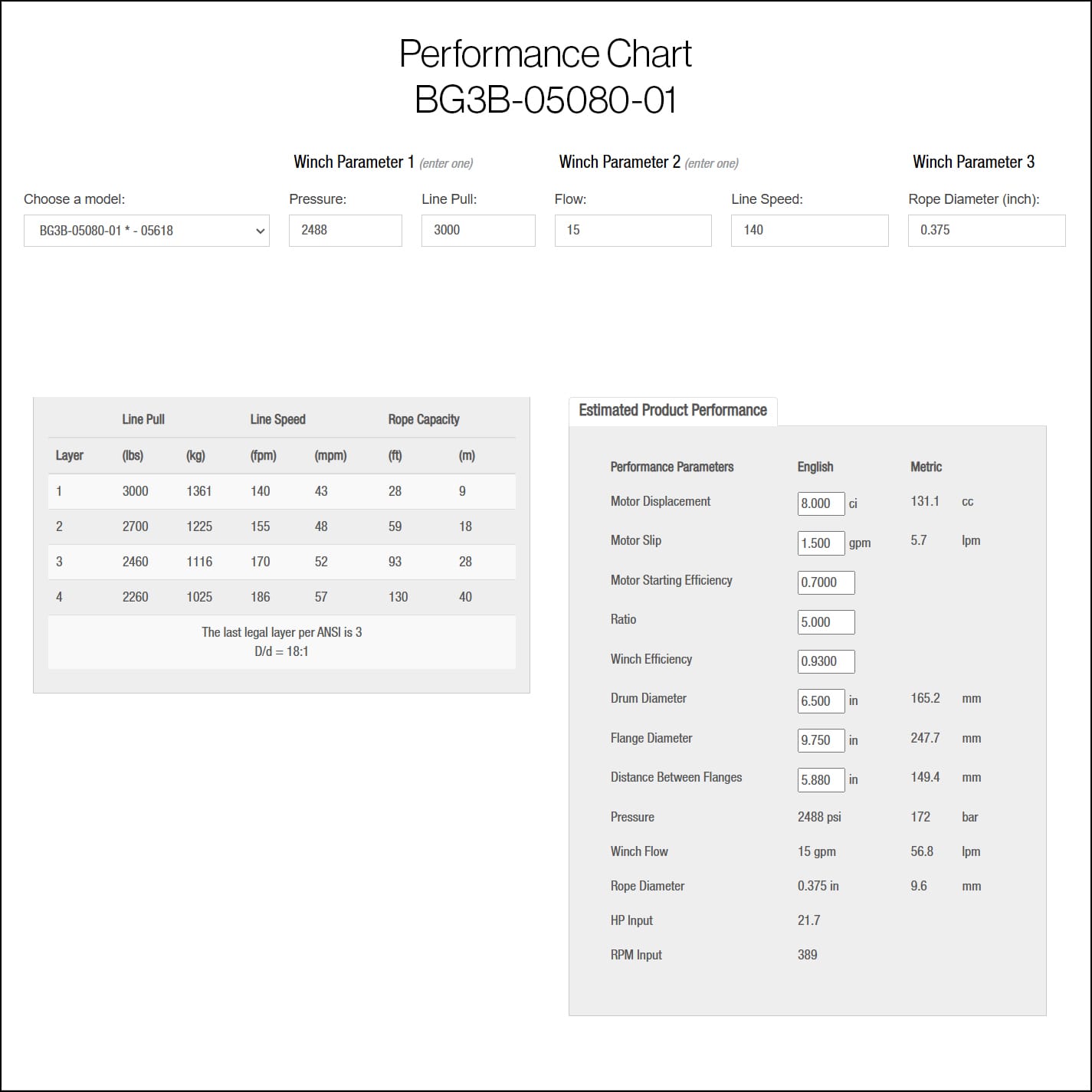

Performance Chart:
Layer 1: 3,000 lbs. at 140 ft./min
Layer 2: 2,700 lbs. at 155 ft./min
Layer 3: 2,460 lbs. at 170 ft./min
Layer 4: 2,260 lbs. at 186 ft./min

*Last legal layer per ANSI is Layer 3
*Specifications are representative of common configuration.

• Cable wedge anchor system
• Cast iron ductile base
• Counterbalance valve and multi-disc static brake for dynamic braking enables smooth operation and safe load handling
• Rugged and compact design
• Sealed, high-efficiency planetary reduction gearing for continuous-duty performance
• Multi-disc Brake - Spring applied and hydraulically released
• Anti-friction bearings for maximum efficiency


Other models available, subject to lead time.

Email us to inquire: info@pacificmarine.net


The BG Series planetary hoist / winch is a high performance product designed to provide many years of service.
The BG series covers the smaller range of hydraulic hoists (can also be used as a hydraulic winch).

There are many BG models available from 3,000 to 8,000 lbs. rated capacity.

Contact info@pacificmarine.net for help in sizing a unit.
