Hydraulic Recovery Winch
30000 lb. Max Line Pull
Model TR30A-30119-01R
w/Wireless Kit
PACCAR Braden

Hydraulic Winch
30000 lb. Max Line Pull
Braden

Recommended Hydraulic Supply
Hydraulic Pressure: 2,950 PSI
Hydraulic Flow Rate: 20 GPM

Rope Diameter: 9/16 Inch

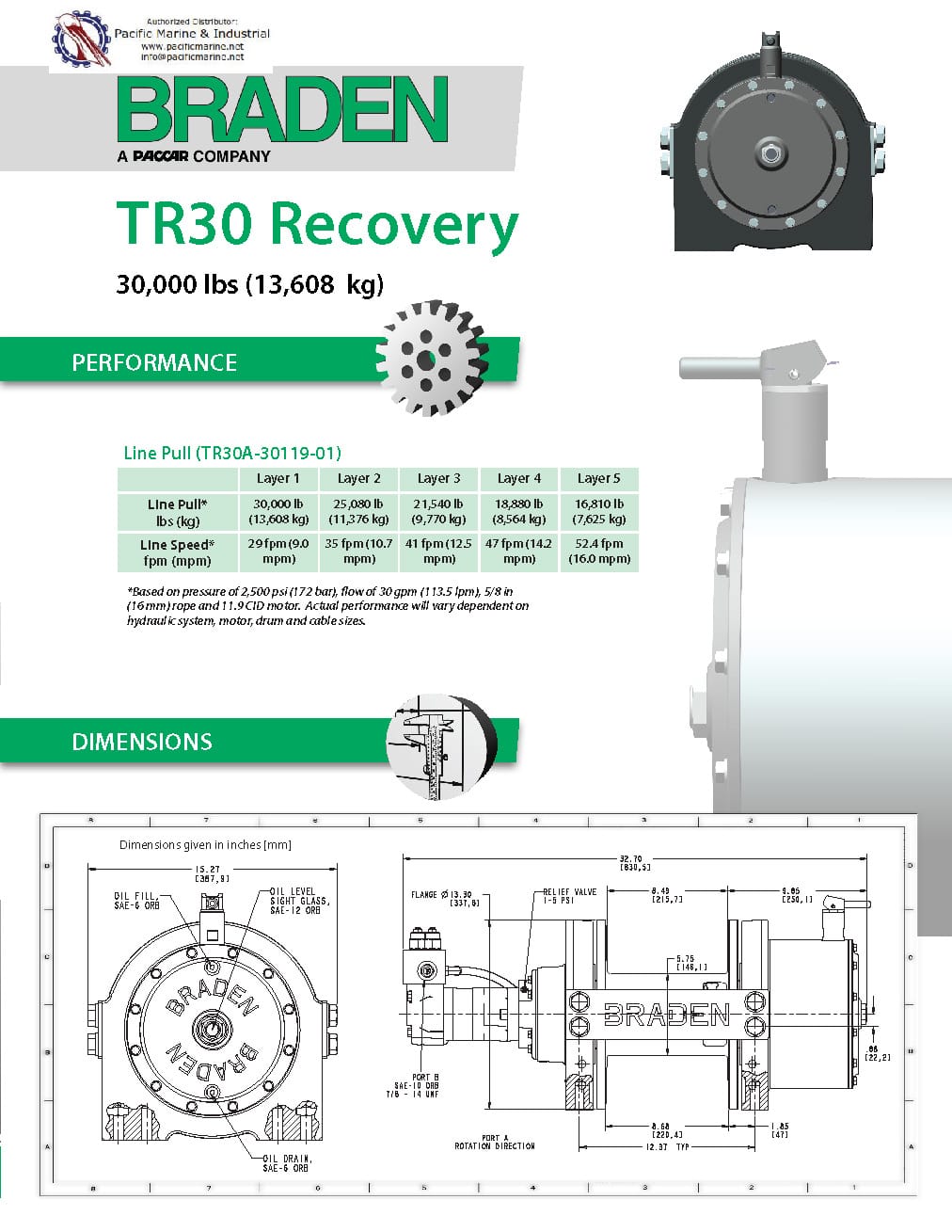

Performance Chart:
Layer 1: 30,000 lbs. at 28 ft./min
Layer 2: 25,080 lbs. at 34 ft./min
Layer 3: 21,540 lbs. at 39 ft./min
Layer 4: 18,880 lbs. at 44 ft./min
Layer 5: 16,810 lbs. at 49 ft./min
**Layer 6: 15,140 lbs. at 55 ft./min

*Last legal layer per ANSI is Layer 5
*Specifications are representative of common configuration.
**Does not meet SAE J706

Less pressure and/or flow can be used with reduced performance.

Contact us at info@pacificmarine.net for Performance Chart.

The wireless kit contains the following:

1) Direction flow control valve
2) Drain kit
3) Wireless transmitter
4) Wireless receiver

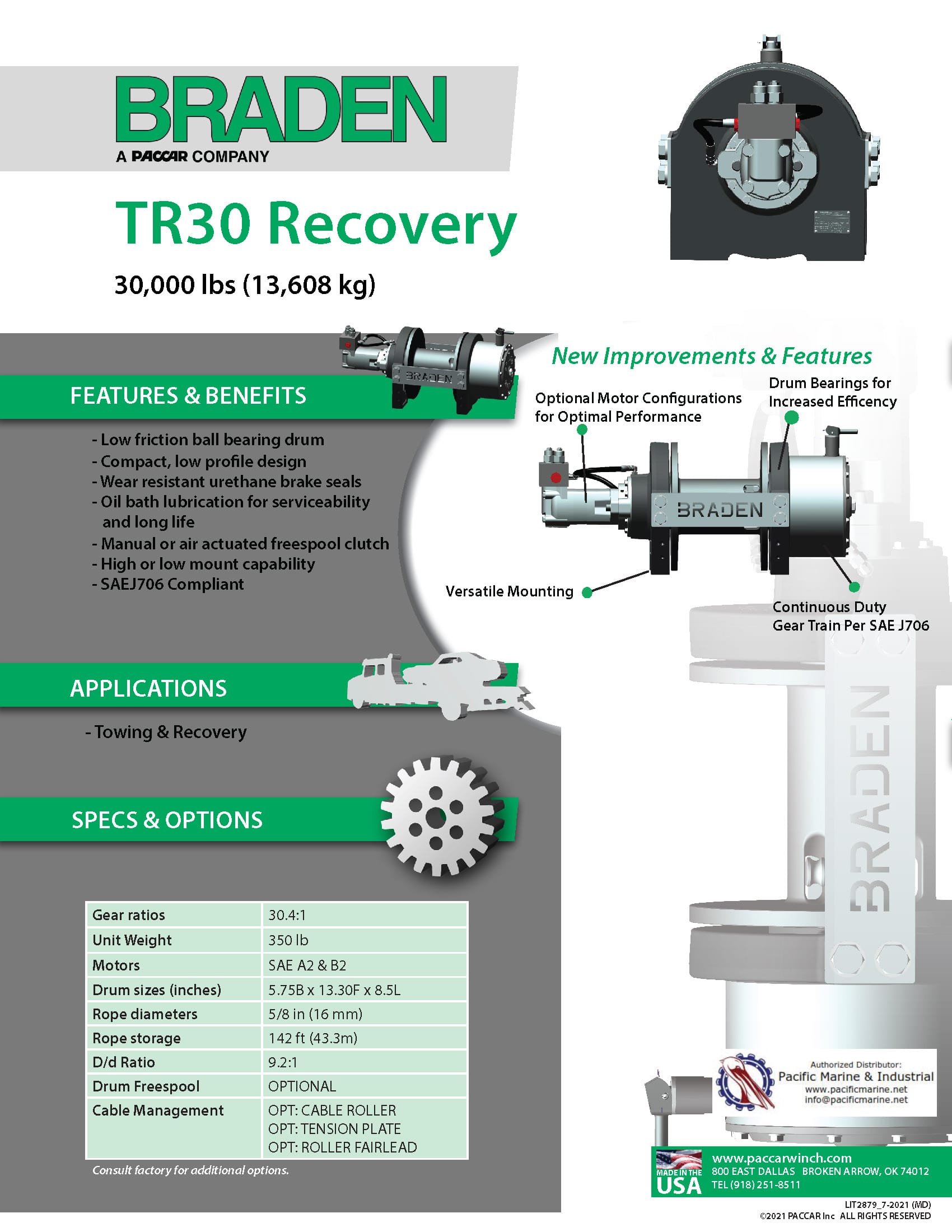

• Low friction ball bearing drum for greater operating efficiency
• Compact, low profile design can be mounted upright or low
• Long drum available for TR20 and TR30
• Wear resistant urethane brake seals
• Oil bath lubrication for serviceability and long life
• Manual or air actuated freespool clutch
• SAE J706 compliant
• EN 14492* compliant (optional)

*TR20 and TR30 only

Other models available, subject to lead time.

Email us to inquire: info@pacificmarine.net


The TR Series planetary winches are designed for stand alone use on trailers, as well as towing and self-recovery applications. The highly efficient and rugged design of the gear train allows for fast line speeds and continuous winch operation,. With versatile mounting options and line pull ratings from 12,000 lb. to 30,000 lb., TR Series winches are easily adaptable to multiple applications.

There are TR models available from 12,000 to 30,000 lbs. rated capacity.

Contact info@pacificmarine.net for help in sizing a unit.
