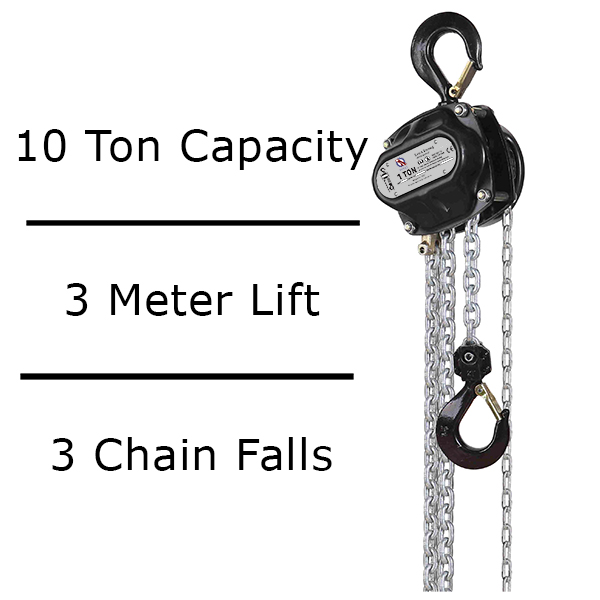

Manual Chain Hoist – 10 Ton

Manual Chain Hoist - 10 Ton - 3 Meter Lift

PDF Series Manual Chain Hoist

3 Chain Falls

Made to the Standard: EN13157

General Information for PDF Series Manual Chain Hoists

● Chain hoist capacity range from 0.5 ton to 50 ton
● Compact sized design product suitable for all application.
● Suspension and load hooks are made of alloy steel, 35CrMo heat treated and
fitted with heavy duty safety latches, fitting groove and inspection points.
● Machined chain sprocket and gears provide smoother, more efficient operation.
● Hook with safety latch securely can rotate freely 360 degrees.
● Ergonomic handle design so that the hoist is easy to operate.
● Hoist has an overload protection system.
● Gears are made up of 20CrMnTi material ,which ensures toughness and better strength.
● Fitted with High strength grade 80 alloy steel load chain with galvanized
finish for corrosion resistance (EN 818-7, safety factor 4)
● Load chain marked with T8 marks as per EN 818-7.
● Heavy duty guide rollers for avoiding slippage of load chain.
● Rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
● All hoists tested at 1.5 times of WLL.

Manual Chain Hoist - 10 Ton - 3 Meter Lift
