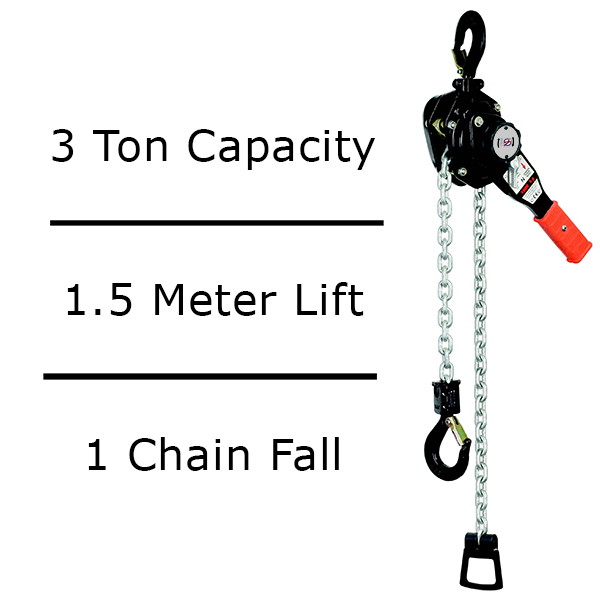

Lever Chain Hoist – 3 Ton

Lever Chain Hoist - 3 Ton - 1.5 Meter Lift

PDH Series Lever Chain Hoists

1 Chain Fall

Made to the Standard: EN13157

General Information for PDH Series Lever Chain Hoists

● Lever hoist capacity range from 0.75 ton to 9 ton.
● Ergonomic handle design so that the hoist is easy to operate, product suitable for all application.
● Suspension and load hooks are made of alloy steel 35CrMo, heat treated and fitted with heavy duty safety latches, fitting groove and inspection points.
● Machined chain sprocket and gears provide smoother, more efficient operation.
● Hook with safety latch securely can rotate freely 360 degrees.
● Gears are made up of 20CrMnTi, material which ensures toughness and better strength.
● Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance. (comply with EN 818-7, safety factor 4).
● Load chain marked with T8 marks as per EN 818-7.
● Heavy duty guide rollers for avoiding slippage of load chain.
● Nylon pull ring.
● All hoists tested at 1.5 times of WLL.

Lever Chain Hoist - 3 Ton - 1.5 Meter Lift
