Pedestal Mounted Marine Seats

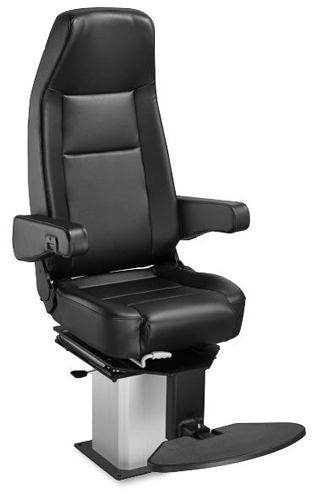

Dolphin Pedestal Mounted Marine Chair

Dolphin Pedestal Mounted Marine Chair


Recommended Application:

When a narrow seat is needed in small bridge and control room areas.  Radar or sonar console chairs.


Purchase ONLINE In Stock Marine Seats - Marine Chairs

Information Required to Quote Marine Seats - Marine Chairs


Marine Seats - Marine Chairs Quick Product Overview



View a List of Selected PM&I Marine Furniture Projects


Marine Seats - Marine Chairs Mounting Options

Marine Seats - Marine Chair Upholstery Options

Versions:
Dolphin: No shock mitigation
Deck Rail for Chair Movement Optional


Profile:

Helmsman and operator chair with comfortable design; the ideal space-saving solution for smaller wheelhouses and engine control room spaces. The Dolphin is equipped with basic-functions and corresponds to the requirements of leading classification societies.


Features:

· high comfort-backrest with integrated headrest

· foldable and angle adjustable comfort armrests (upholstered)

· backrest adjustment 90°

· fore and aft adjustment 160 mm (in seat top)

· swivel-mechanism 360° with locking every 5 degrees

· strong pedestal made of salt water resistant aluminum

· shock-absorber in the column (height adjustable versions)

· foldable, angle-adjustable footrest that swivels together with the seat-top

· standard-upholstery: fabric black (Trevira cS) other materials and colors on request



Versions

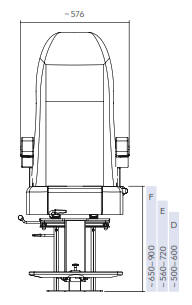

Sitting heights (fixed version):

all heights possible



Sitting heights (adjustable versions):

Dolphin Pedestal Mounted Marine Chair
